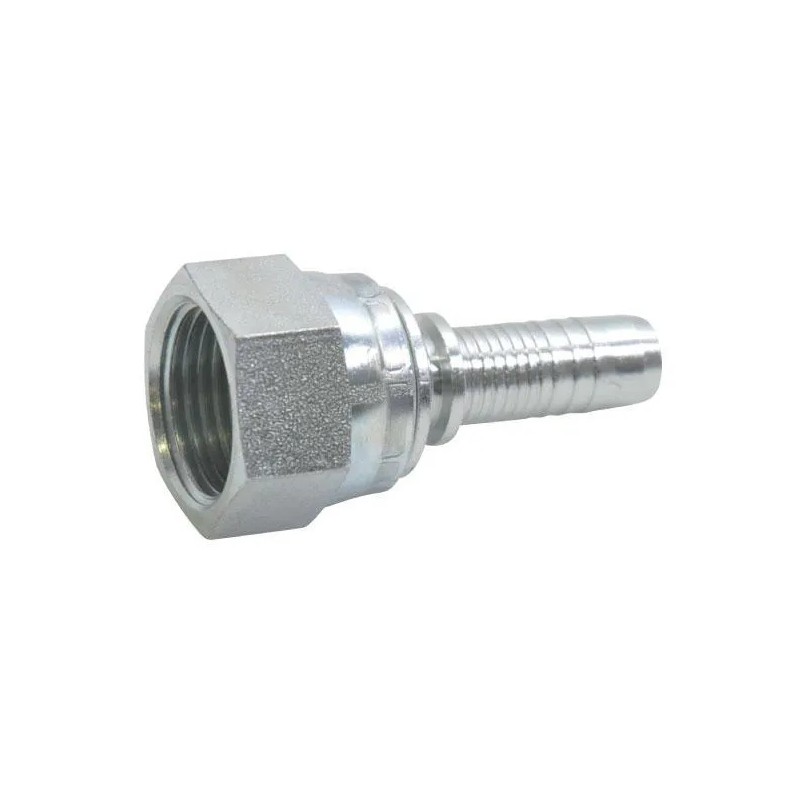

Pa1617 tip dn16 1 1 16 unf

PA1617 End cap DN16-1'1/16 UNFEAN

8716106441082

Product details

Cone seal - metal on metal

Flare end

Cone angle

37 °

Shape

Straight - 2 sides of connection

Connector type no. 1< p>

Swivel Nut

Conical

Connector Type No. 1 - Male/Female

Female

Connector Type No. 1 - code

DKJ

F1 Connector thread diameter

1-1/16 inch

Connector thread type

UNF

CH1 Wrench size for connector no. 1

32.0 mm

Connector no. 2 type

Hose connector

Connector No. 2 Type - Male/Female

Male

Connection Diameter No. 2

5/8 inch

Connection Diameter No. 2

16 mm

C Dimension from the axis of the joint to the bottom of the next joint

20.1 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

JIC union nut ( UNF thread) with internal cone 74°

Application

Screw connections on the folded edge of the sheet metal

Type

DKJ
