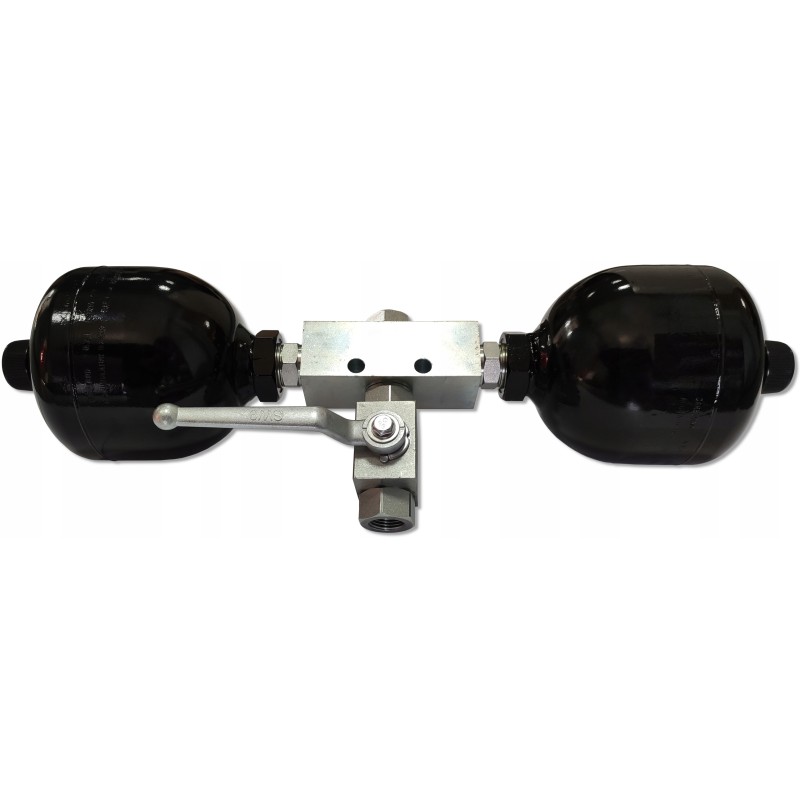

Shock absorber, double hydroaccumulator 0 75 l g1 2

Double hydraulic shock absorber 0.75L with a straight connector and a shut-off ball valve. SKRAW-MET CODE: [8316]The set includes: Hydraulic accumulator Hydroaccumulator HDA 0.75L

Straight connection, nipple G1/2' - G1/2' + washer

2-way hydraulic ball valve VH2V-G1/2

AT THE CUSTOMER'S REQUEST, ADJUSTMENT TO THE INDICATED PRESSURE - FREE

The pressures on both are different, set specially for use in TUR front loaders or other similar agricultural machines and construction loaders.

Different pressures ensure shock absorption in different operating conditions - when the vehicle is moving with a load and when the vehicle is moving without any load. In each of these cases, a different shock absorber will be responsible for depreciation.

It is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

They are used in TUR front loaders, agricultural machines, plows, aggregates, construction machines, cranes, etc., i.e. machines exposed to sudden changes in pressure in the hydraulic system.

The role of the hydroaccumulatorThe purpose of the accumulator is to store oil under pressure in the hydraulic system and, if necessary, restart it to dampen shocks and limit pressure surges.

Its main function is performed in the following aspects:As auxiliary power

For emergency power source< p>

Replenishing losses and maintaining constant pressure

Absorption of hydraulic shocks

Absorption of pulsations and noise reduction

Principle of operation of the shock absorber: The hydraulic accumulator consists mainly of with hydraulic element and gas element with gas-tight separator.

The oil part is connected to the hydraulic flow path.

When the pressure increases, the gas is compressed and the liquid flows into the hydraulic accumulator.

When the pressure drops, the compressed gas expands and releases the saved liquid into the pipeline.

Hydroaccumulators should be selected according to the following dependencies: What will be its function in the hydraulic system?

Hydroaccumulator capacity increases in proportion to the capacity of the cylinders.

The greater the load on the cylinders, the greater the pressure in the hydroaccumulator.

Technical specifications: The hydroaccumulators are charged with nitrogen at a pressure of 70 bar and 30 bar. They have a built-in mechanism that allows you to safely and easily reduce the nitrogen pressure according to your needs.

Internal thread in the body: G1/2'

External thread of the gas port: M28x1.5< p>

Total capacity of the shock absorber: 0.75L

Maximum pressure: 210 bar

Body material: cast iron

Temperature range: Permissible ambient temperature: -30°C to +80°C

Permissible oil temperature: -30°C to +80°C

Oil type: mineral oil-based hydraulic oil

2-WAY HYDRAULIC BALL VALVE G1/2'The hydraulic valve is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

High pressure ball valve - rotates 90 degrees - is mainly used to close and open the flow of liquid (e.g. hydraulic oil) in the hydraulic system.

The valves are characterized by compact design, reliable tightness, simple design and durability for many years of use at high pressure.

________________________________

To connect, simply connect the supply line to port A and P. Technical specifications: Maximum flow: 70 L/min

Internal threads: G1/2'

Maximum liquid pressure: 500 bar

Ambient temperature: -40°C to +60°C

Oil temperature: from -15°C to +80°C

Material: galvanized steel
