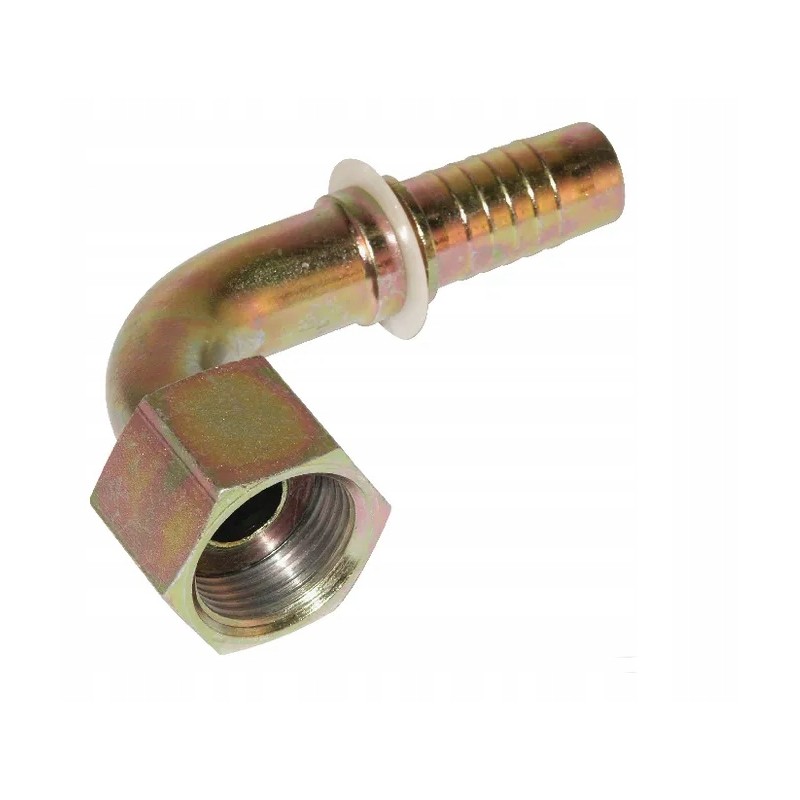

Pav101390 tip dn10 13 16 orfs 90

PAV101390 End cap DN10-13/16 ORFS-90°EAN

8716106786244

Product details

O-ring seal

Shape< p>

Elbow - 2 sides of the connection

Connector type no. 1

Thread

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

ORFS

Connector no. 1 length

43.8 mm

Connector Thread Diameter

13/16 inch

Connector Thread Type

UNF

Wrench Size for Connector No. 1

24.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection Diameter No. 2

3/8 inch

Connection Diameter No. 2

10 mm

Dimension from the axis of joint no. 2 to the end of the next joint

41 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1222493-06080M< p>

Connection

UNF union nut with flat seal (ORFS)

Application

Only for flat seals (ORFS)

Type

ORFS
