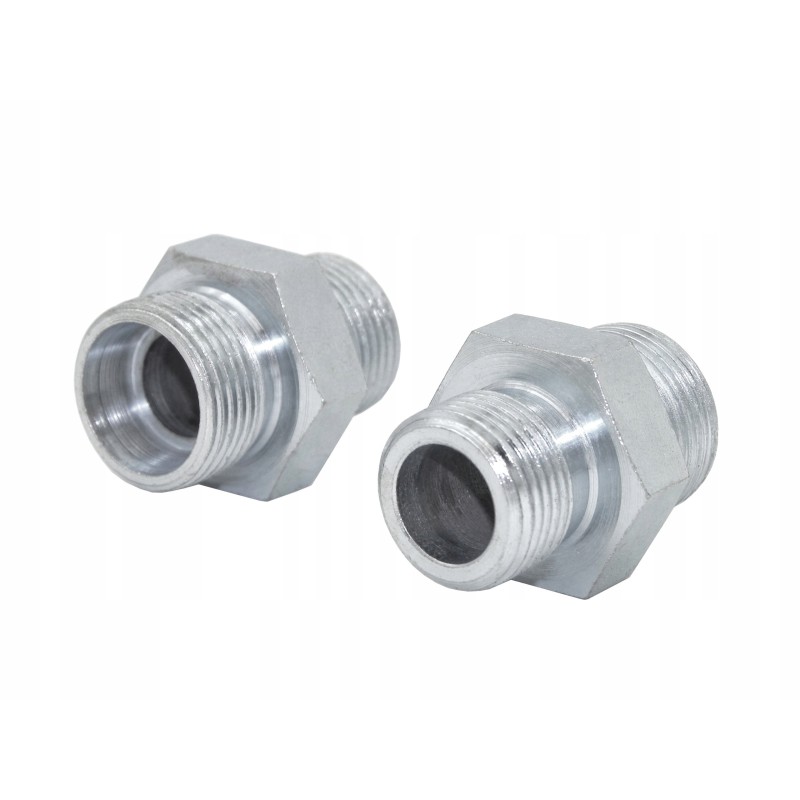

Hydraulic connection nipple m27x2 m18x1 5 12l

NYPEL HYDRAULIC CONNECTION M27x2 - M18x1.5 12LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Hydraulic connection screwed into the body, e.g. pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic conduits.

The side intended for screwing into the body additionally requires the use of a washer.

The other side is intended for screwing the conduit, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is not required here.

The connection is intended only for screwing into the body, it is not suitable for connecting two wires. For this purpose, connectors are used, which can be purchased at our other auctions.

Technical data:

Thread on the body side: external metric 27x2

Thread on the other side: external metric 18x1.5 12L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
