Hydraulic elbow with locknut BSP 3 4
  • Hydraulic elbow with locknut BSP 3 4
  • Hydraulic elbow with locknut BSP 3 4

Hydraulic elbow with locknut BSP 3 4

15010421459643
£21.18
Quantity
5 Items

Description

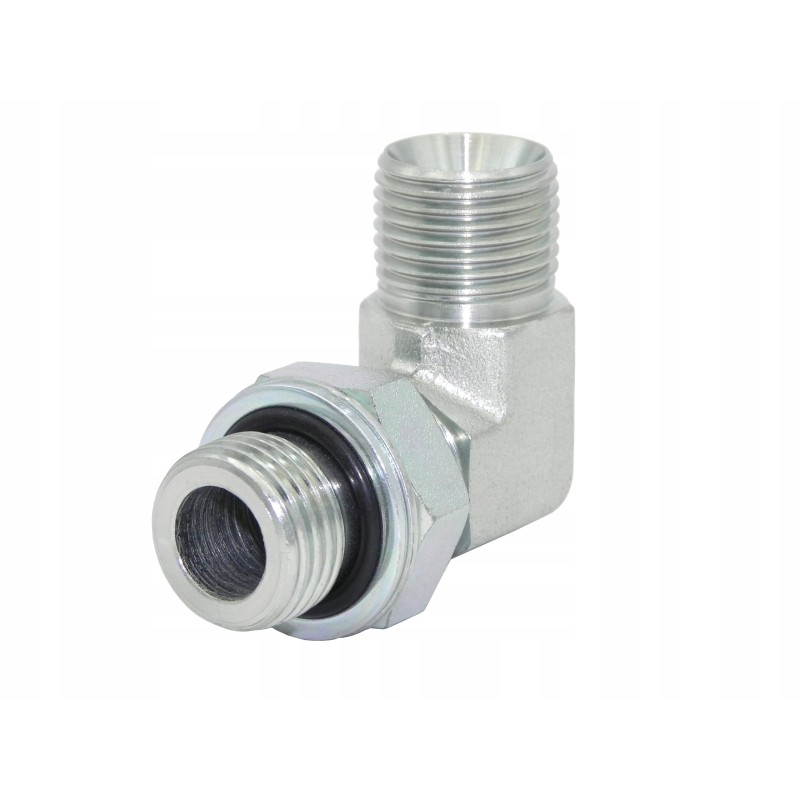

HYDRAULIC ELBOW WITH BSP 3/4'' LOCK NUT Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

Elbow connector bodies included with a lock nut, sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with an external thread and a cone for connecting to the hydraulic hose.

Technical data:

Thread on both sides: external inch BSP 3/4''

Pressure nominal: 180bar

Maximum pressure: 230 bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010421459643
KPN G3/4
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KPN G3/4
