3 sec splitter to turn set joystick cables

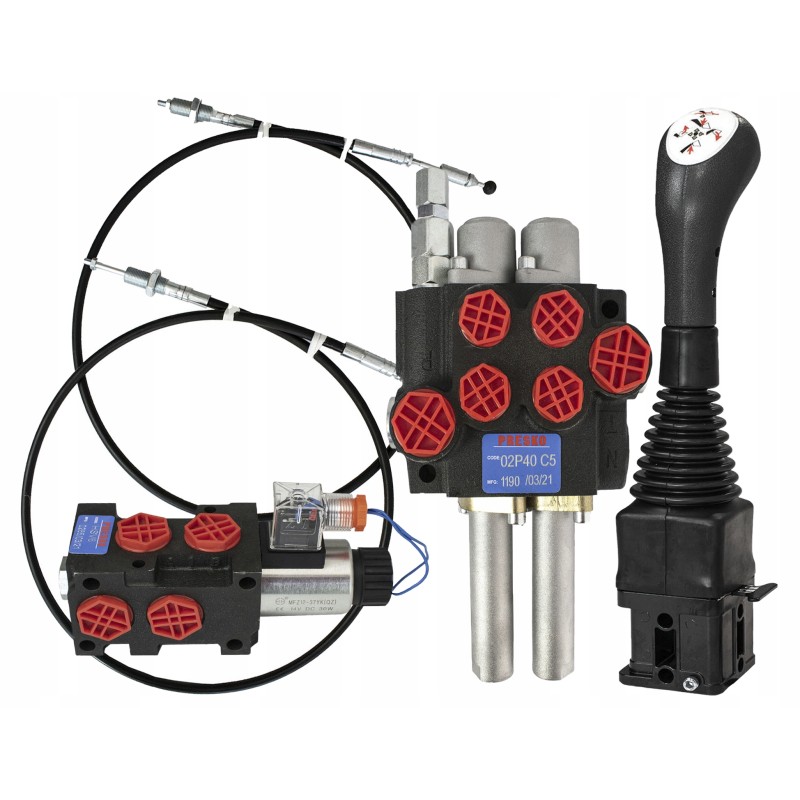

2-SECTION HYDRAULIC DIVIDER 40l WITH JOYSTICK, CABLES (2x2m) AND SOLENOID VALVE - SET High-quality set with a durable two-section distributor and a solid solenoid valve serving as the third section. The distributor is successfully used in agriculture, horticulture, construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

In a set with cables, a joystick and a solenoid valve used in hydraulic systems as an additional section - usually the third with a 2-section manifold.

Durable and proven design of the set, guarantees failure-free operation of the system for a long time.

MOST IMPORTANT FEATURES: Solid and compact monoblock construction

Easy assembly

The design allows for series connection with another manifold using a pressure screw

Equipped with an adjustable safety valve

High-quality materials used in production guarantee long and trouble-free operation

PRESKO distributors are used by many Polish and foreign producers of agricultural, construction and industrial equipment.

Dividers very often used in TURACH and:

- Tractors

- Excavators

- Cyclops

- Forklifts

- Agricultural machines and many others

Technical specificationNumber of sections: 2

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Weight: 2.76 kg

Typical application: power hydraulics

Connection:

Series connection (1) ' N' : BSP 1/2' internal thread

Supply from pump (2) 'P' : BSP 1/2'' internal thread

Return to tank (3) 'T ': BSP internal thread 1/2''

Section outlet (4): BSP internal thread 3/8''

Safety valve: (5)

THE SET INCLUDES: - Durable Presko hydraulic distributor: 2 sections

Flow 40l

Maximum pressure 250bar

Safety valve setting 180bar

Power supply 1/2''

Return 1/2''

Output to 3/8'' sections

The joystick connected to the distributor returns automatically to the neutral position, immediately after removing your hand - each section has: - Neutral position 0 - oil is directed to the overflow

- Working position 1 - oil flow - in the case of the actuator, the piston rod extends.

- Working position 2 - oil flow - in the case of the actuator, the piston rod retracts.

- Solenoid Valve A high-quality PRESKO solenoid valve is used in hydraulic systems as an additional section - usually the third one in a 2-section distributor.

It can be responsible for controlling a crocodile or a gripper.

The solid construction of the solenoid valve guarantees long and trouble-free operation.

A solution common in TURA.

TECHNICAL SPECIFICATIONS:

- Maximum oil flow - 50 l/min

- Threads (BSP) - 1/2'

- Voltage - 12 V

- Maximum pressure - 315 bar

- Maximum operating temperature -20 +70 °C

- Solid Joystick by PRESKOJoystick with one button, adapted to control ball-ended ropes

Durable construction made of high-quality materials

Enables precise control of devices such as a spoon, grapple or crocodile.

Perfect for TURNS, CYCLOPES, FORKLIFTS AND LOADERS

Used safety mechanism blocking the movement of the joystick head

Cable opening - diameter 14mm

4 working positions, neutral position, work button

Italian product

- Two cables: 2 x 2m

durable protective armor

They are used to connect the distributor with a joystick with a ball system. If you have any questions - we are here to help help!
