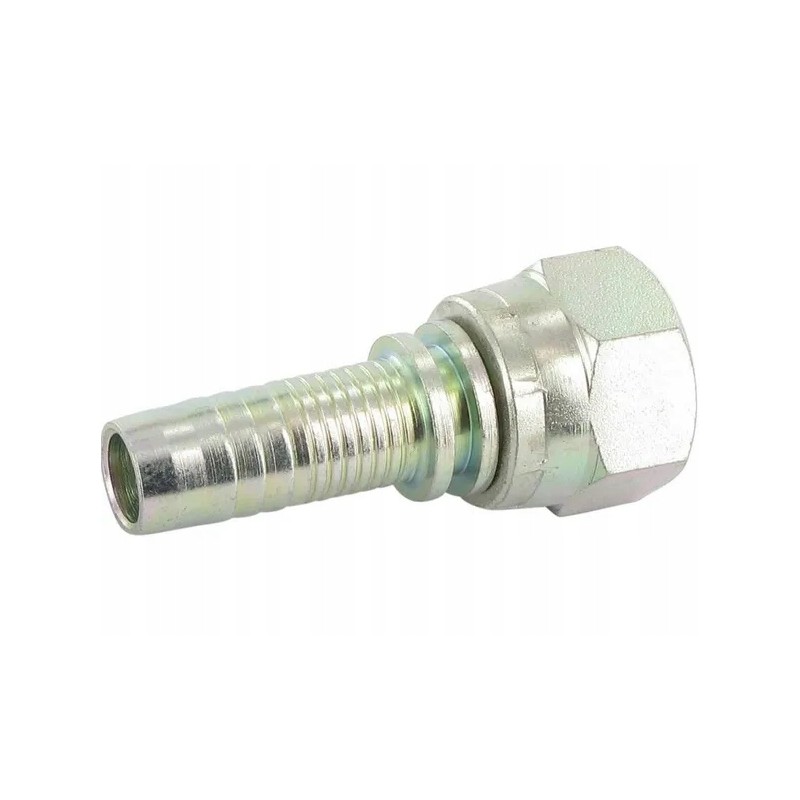

Pa1312 tip dn13 3 4 unf

PA1312 End cap DN13-3/4 UNF EAN

8716106788422

Product details

Sealing on the cone - metal on metal

Flare end< p>

Cone angle

37 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Swivel Nut

Conical

Connector Type No. 1 - Male/Female

Female

Connector Type No. 1 - code

DKJ

Length of connector no. 1

18.6 mm

Connector thread diameter

3/ 4 inch

Connector Thread Type

UNF

Wrench Size for Connector No. 1

25.0 mm

Type connectors no. 2

Hose connector

Type of connector no. 2 - male/female

Male

Diameter of connection no. 2

1/2 inch

Connection diameter no. 2

13 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

JIC union nut (UNF thread) with internal cone 74°

Application

Bolted connections on the folded edge of the sheet metal

Type

DKJ
