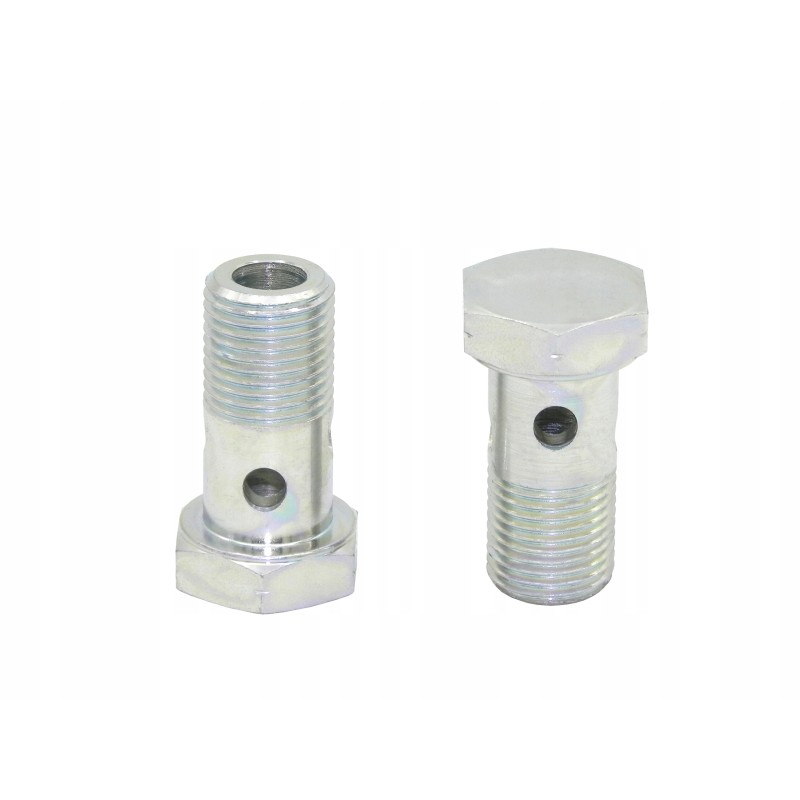

Hydraulic screw with eyelet 10x1 eyelet
  • Hydraulic screw with eyelet 10x1 eyelet
  • Hydraulic screw with eyelet 10x1 eyelet

Hydraulic screw with eyelet 10x1 eyelet

15010751937984
£10.15
Quantity
5 Items

Description
HYDRAULIC EYELET SCREW FI 10mm Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

The eye connection system is used where space is limited. and a crimped cable with a traditional elbow does not fit.

The screw fits connections with a ring body. Connects the pump, cylinder, distributor, etc. with hydraulic lines.

Technical data:

Thread: external metric 10x1

Required eyelet diameter: 10mm

Hexagonal head tightened with a wrench: 14

Material: weldable steel, galvanized, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010751937984
SRU M10
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
SRU M10
