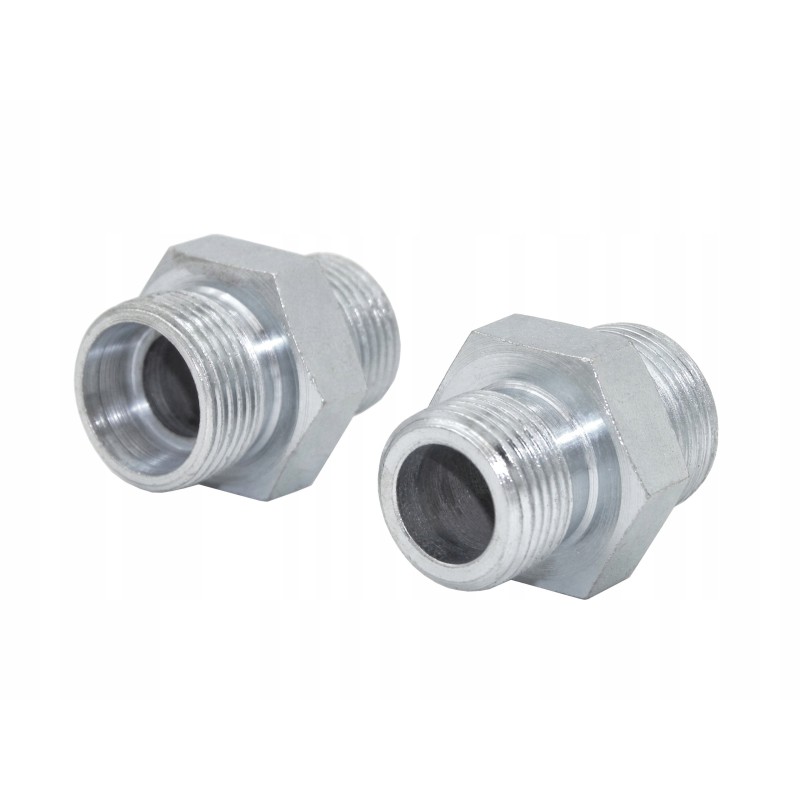

Hydraulic connection nipple m20x1 5 m20x1 5 12s

NYPEL HYDRAULIC CONNECTION M20x1.5 - M20x1.5 12SApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Hydraulic connection screwed into the body e.g. pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic conduits.

The side intended for screwing into the body additionally requires the use of a washer.

The other side is intended for screwing the conduit , elbow or other fitting. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is not required here.

The connection is intended only for screwing into the body, it is not suitable for connecting two wires. For this purpose, connectors are used, which can be purchased at our other auctions.

Technical data:

Thread on the body side: external metric 20x1.5

Thread on the other side sides: external metric 20x1.5 12S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
