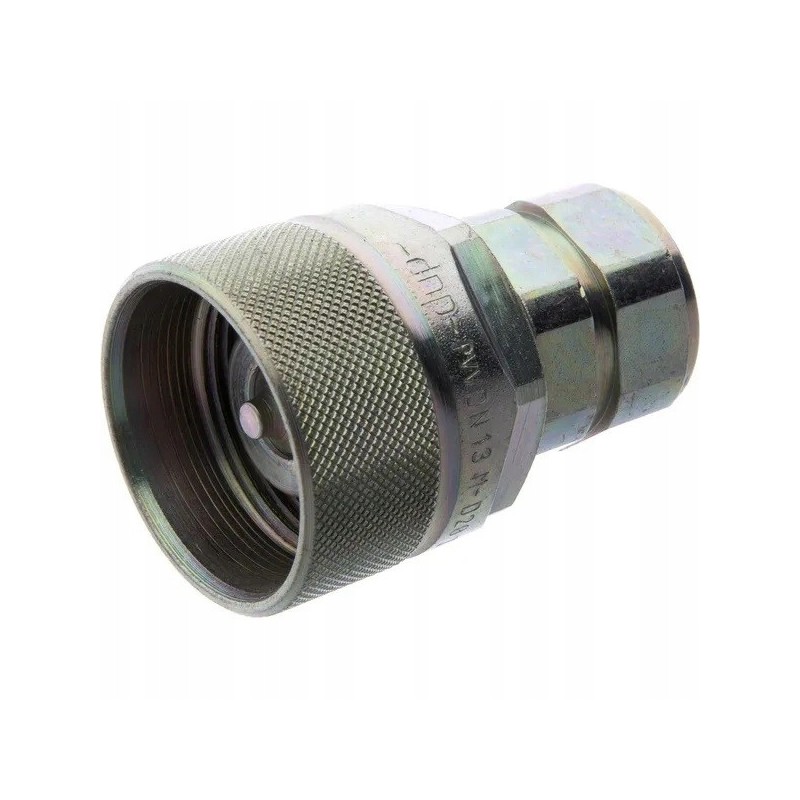

Quick connector, screwable plug, hs102igf08

Application

Construction machinery

Mineral oil based fluids Properties

Solid workmanship Low pressure losses With cut-off on both sides Technical information The connector must be screwed in until it stops. Benefits

High working pressure

Protection against unintentional unscrewing due to vibrations Shape Straight - 2 sides connection Connector type No. 1 Quick connect Connector type No. 1 - male/female Male D1 Connection diameter 22 mm Connector No. 1 thread diameter M36 Connector No. 1 thread pitch 2.00 mm Connector thread type Metric SW Wrench size for connector No. 1 36.0 mm Type connector no. 2 Thread Type of connector no. 2 - male/female Female Thread diameter of connector no. 2 1/2 inch Number of turns per inch of thread of connector no. 2 14 L3 Length of thread of connector no. 2 12 mm Thread type of connector no. 2 BSP Possibility of connection under pressure Yes Standard ISO 14541 Flow at pressure 2 bar 80 l/min ØD Outer diameter 42 mm Working pressure max. 400 BAR Operating temperature max. 100 °C Operating temperature min. -30 °C Reference number OE HS102IGF08 Note Can be connected at a pressure of max. 50 bar
