Hydraulic distributor 5z50 5xa1 24v pan badestnost

HYDRAULIC DIVIDER, 5 SECTIONS, 40L/min, ELECTRICALLY CONTROLLED 24V, INCLUDED WITH CONTROL PANEL AND CABLE HARNESS. Manifold production:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: 05Z50 A ES3 24VDC G, symbol: 1.10.45 .051.1

Panel production:

Original product of the Hydrolider brand, symbol: 1.10.62.005

Application:

It is widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial and other devices with a hydraulic system.

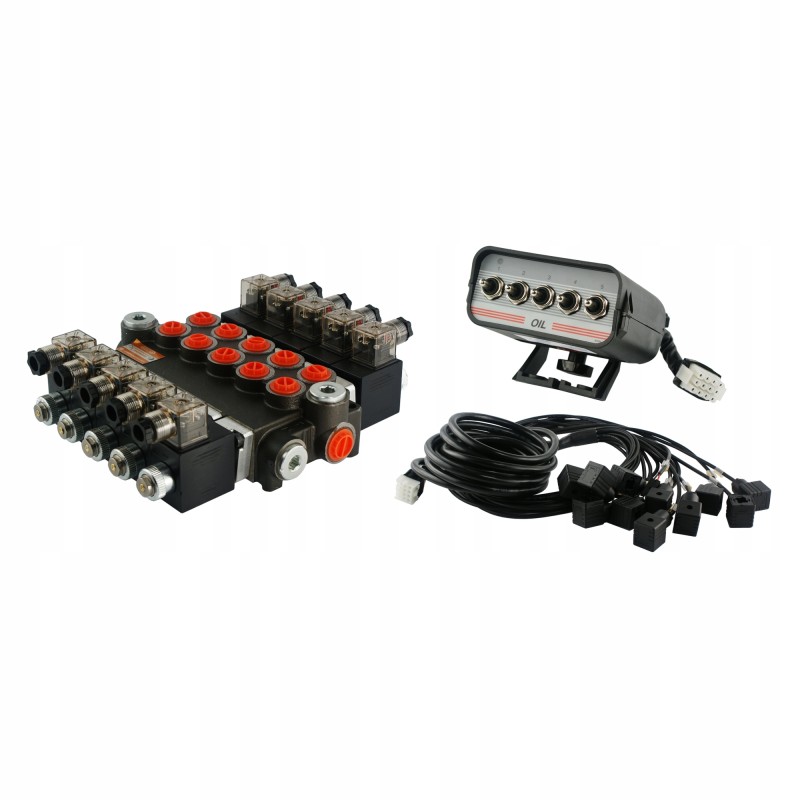

The panel allows you to control five sections in an electrically controlled hydraulic distributor

A set of cables enabling the electrical connection of the distributor with the control panel.

Technical data:

The set includes a distributor, control panel with a set of cables and plugs.

Recommended oil flow in the system: 0 - 40 l/min.

Example of control : five double-acting cylinders.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

All sliders are three-position (1 - 0 - 2), on a spring, i.e. they return to the neutral position on their own after the power supply is cut off. When the slider is in the neutral position (0), the oil flows freely through the distributor to the return channel, the pump then does not work on pressure and is relieved.

Principle of slider operation:

Position 0 neutral (power supply to both coils is cut off) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (power supply only to the first coil) the actuator piston rod extends.

Position 2 working (power supply only to the second coil), the actuator piston rod retracts.

On the right side, a hydraulic diagram of the distributor:

GENERAL INFORMATION ELECTRIC DISTRIBUTOR:Current:

Power supply direct current (DC) 24V

Connection:

Power supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2): BSP 1/2'' internal thread

Sections (A1, A2, A3, A4, A5, B1, B2, B3, B4, B5): BSP 3/8 internal thread ''

Series connection (N): BSP 1/2 internal thread'

Pressure range:

Maximum supply pressure: 250Bar

Maximum pressure on the return: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

INFORMATION GENERAL CONTROL PANEL: All up and down switches with automatic centering (1-0-2) without latch.

Each panel is sold complete with a two-meter power cable and a combined four-meter cable with plugs connecting the panel with distributor. We also have sets of extension cables of 3m, 6m or 10m, which are available at other auctions.

When any switch is on, the signal is simultaneously transmitted to an additional pair of wires, which can be used to activate the warning signal (horn , cock) or the coil of the unloading valve (CETOP type distributors), possibly for switching on the pump via a relay.
