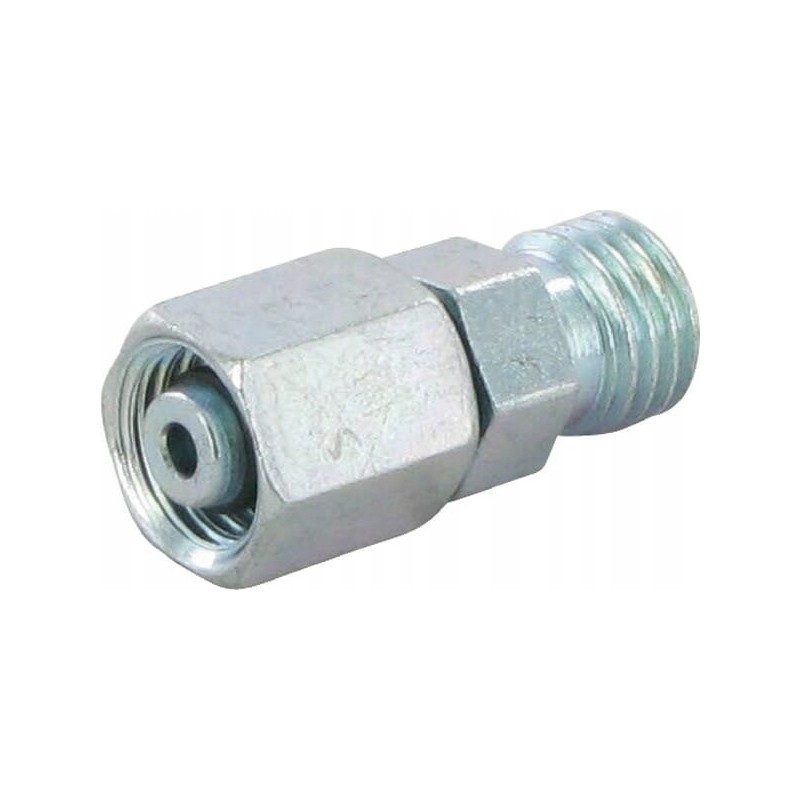

Straight connector with screws m12x1 5 6l m12x1 5 6l

Straight connector with nut M12x1.5 6L - M12x1.5 6L Parameters

Part Number: KOVO6L6L

Unit: Piece

Manufacturer: Dietzel

Cone Angle: 24 °

Shape: Straight - 2 Sides Connection

Connector Type No. 1: Swivel Nut

Connector Type No. 1 - Male/Female: Female

Connection Diameter: 6 mm

Connector No. 1 Thread Diameter: M12

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector No. 2 Diameter: 6 mm

Thread diameter of connection no. 2: M12

Thread pitch of connection no. 2: 1.50 mm

Thread type of connection no. 2: Metric

DIN standard: 2401

Total length: 33 mm

Surface treatment: Zinc-plated

Working pressure max.: 315 BAR

Series: 6L

Advantages

- Limited risk of leakage Product details

- Pre-assembled with O-ring - L series nut

- External L - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request - Galvanized, chromium-free CR6

Benefits

- Low risk of leakage Contains

- Corps

- Connecting nut

- Conical seal with O-ring seal
