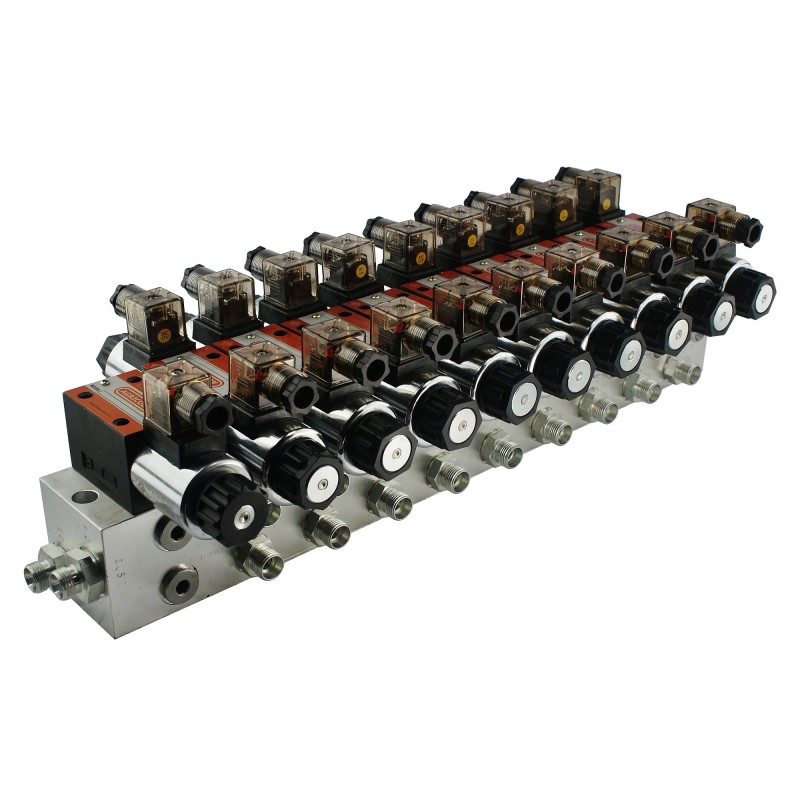

Cetop ng6 9s 12v ha 9xe hydrolider distributor

HYDRAULIC DISTRIBUTOR 9 SEC CETOP 03 NG6 ELECTRICALLY CONTROLLED 12VProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 1.10.60.090

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators , sweepers, industrial machines and other devices with a hydraulic system.

Technical data:

The set includes a set of connections with an M18x1.5 output and a set of 12 DC electrical plugs with light-emitting diodes.< p>

Recommended oil flow in the system: 0 - 50 l/min.

Example control: nine double-acting cylinders.

Material:

Divider body and steel sliders, electric plugs and plastic tightening nuts, block made of steel or aluminum depending on the batch.

Principle of operation:

The distributor has one starting section and nine working sections. The starting or unloading section is necessary, it is intended to relieve the pump when we do not control any working section of the distributor.

No working section will work if no current is passed to the starting section, therefore the electrical connection must be configured in such a way that each electrical signal sent to the working section must simultaneously reach the starting section.

Control:

The starting section slider is two-position (0 - 1), spring-loaded, i.e. it returns on its own to the neutral position after cutting off the power supply. When the slider is in the neutral position, the oil flows to the overflow, the pump is then relieved.

Principle of operation of the slider:

Position 0 neutral (current supply to the coil cut off) is not possible obtaining pressure on the working sections.

Working position 1 (power supply to the coil open) allows obtaining pressure on the working sections.

The working section slider has three positions (1 - 0 - 2), on spring, i.e. it returns to the neutral position after cutting off the power supply.

Principle of operation of the slider:

Neutral position 0 (the power supply to both coils is cut off) the actuator piston rod is standing - the oil goes to overflow.

Working position 1 (power supply only to the first coil), the actuator piston rod extends.

Working position 2 (power supply only to the second coil), the actuator piston rod retracts.

On the right, hydraulic diagrams, from the top a diagram of the starting section and below a diagram of the working sections:

Current:

Power supply direct current (DC) 12V

Electrical plugs have diodes that light up when current is applied to the coil.

Connection (internal threads in the body):

Power supply from the pump (P): internal thread BSP 1/2''

Return to tank (T): female thread BSP 1/2''

Sections (A1, A2, A3, A4, A5, A6, A7 , A8, A9, B1, B2, B3, B4, B5, B6, B7, B8, B9): BSP internal thread 3/8''

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

Overflow valve factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil : FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C up to +80 C

Important!!!

Agricola's sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted. The set includes precise, pictorial assembly instructions along with a list of individual elements included in it.
