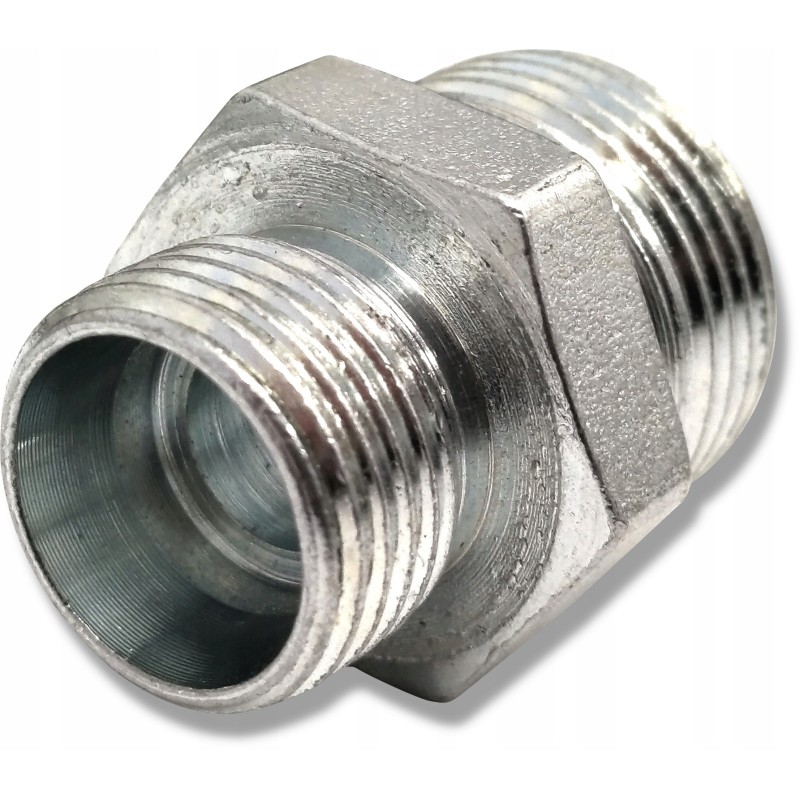

Straight hydraulic reduction, nipple m16 m22
  • Straight hydraulic reduction, nipple m16 m22
  • Straight hydraulic reduction, nipple m16 m22

Straight hydraulic reduction, nipple m16 m22

1508125091193
Other (SM)
£12.61
Quantity
5 Items

Description
STRAIGHT HYDRAULIC REDUCTION NIPEL M16 M22Application:

Hydraulic reduction is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is used to connect the main components in the hydraulic system with hydraulic lines.

It is responsible for connecting the hydraulic line or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 37.5mm< p>

Nominal diameter of the passage: 8mm

M1 thread on the cable side: external metric 16x1.5

M2 thread on the cable side: external metric 22x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

1C -16-22X5010

[1382]

Material:

welded steel, galvanized, corrosion-resistant

Product Details
Other (SM)
1508125091193
1382.16-22BB
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
1382.16-22BB
