Pressure gauge with a set of screw-on quick connectors 0 400

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM [8048]

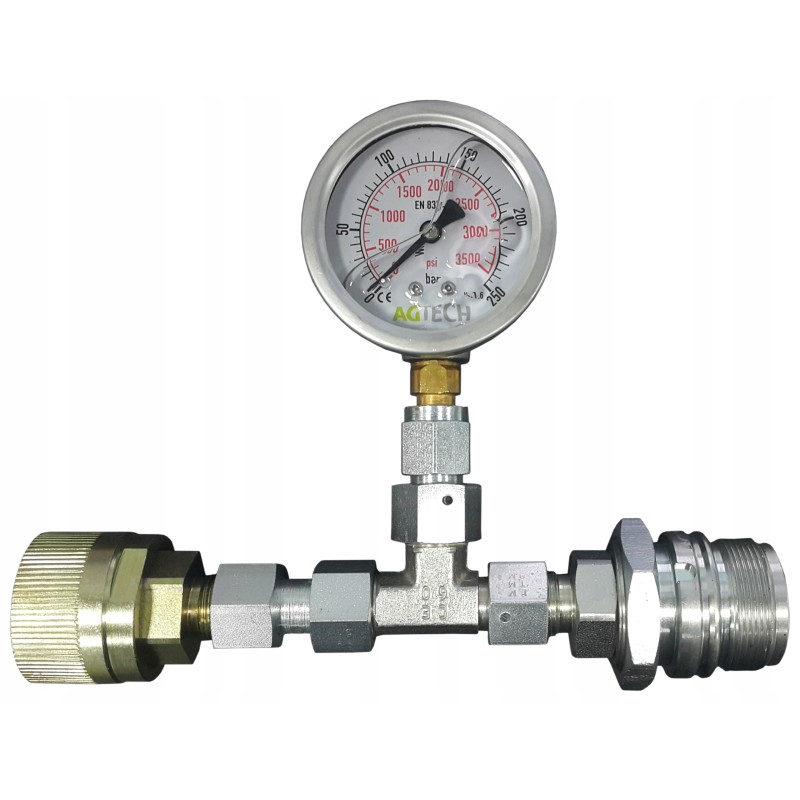

GLYCERINE MANOMETER WITH A SET OF SCREWED QUICK CONNECTORS PRESSURE MEASURING RANGE: 0-400 BAR (PLUG PHOTO OF MANOM. WE DELIVER WITH A SCALE AS IN THE DESCRIPTION)

Application:

Glycerine pressure gauge new works perfectly in machines and hydraulically powered devices.

It can be used in agriculture, horticulture, forestry and construction.

The manometer allows you to measure liquid pressure in a closed hydraulic system.

The interior is filled with glycerin, which allows accurate and precise measurement despite difficult working conditions.

Set components:

[0313] Hydraulic manometer, pressure gauge 0-400 BAR

[1403] Manometric connector G1/4` M18x1.5

[1412] Tee connector with adjustable nut X-ELV 12 L DKO 18x1.5 / 18x1.5 / 18x1.5

[1411] Straight connector DMO 12 L / 12 L 18x1.5 / 18x1.5

[1423] SCREWED QUICK CONNECTOR OLD TYPE VALVE PLUG M18

[1422] SCREWED QUICK CONNECTOR OLD TYPE VALVE SOCKET M18

Technical data:

Pressure measurement range: 0 -400 Bar

Outer diameter of the clock: 63 mm

Operating temperature [°C]: -10 to +50

Material:

Steel casing, viewfinder glass

The glycerin manometer differs from standard manometers in its interior. It is filled with glycerine, which secures and protects the pointer against vibrations and oscillations. Glycerine also allows you to increase the level of measurement accuracy.
