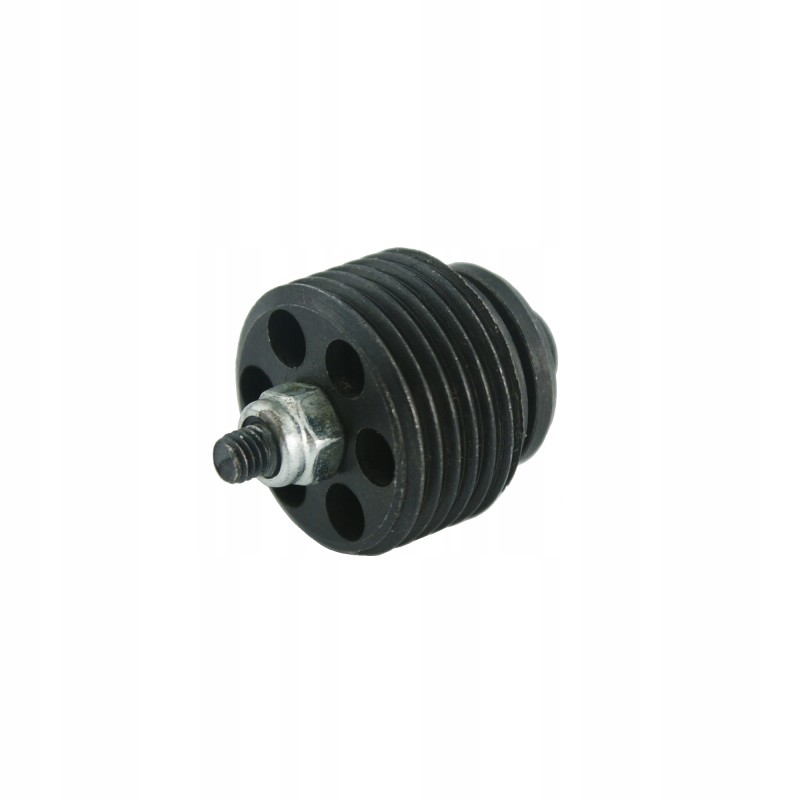

Vuba cartridge safety valve 1 180l hydrolider

COMPLETE VUBA HYDRAULIC VALVE 1' CARTRIDGE Production:

Original Italian product of the Hydrolider brand, symbol: 1.35.45.025

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The valve is mainly mounted for various purposes. type of hydraulic cylinders, e.g. telescopic ones in loading trailers. It is recommended that the valve be screwed directly to the body of the hydraulic cylinder. If we use a hose to connect the valve to the cylinder, it will not be secured. For proper installation of the valve, a body or a sleeve is needed, all these elements as complete valves can also be purchased at our other auctions.

Principle of operation:

Immediately after the pipe breaks, the momentum of the oil in the actuator causes the valve to block and stop the oil leakage. The actuator remains in the position it was in when the cable broke. The valve thus gives time to replace the damaged pipe and return to operation without major financial and environmental losses and damage.

Technical data:

On the other hand, external thread on the body [BSP]: 1''

Material: polished steel

Maximum pressure: 350 bar

Weight: 0.265 kg

Maximum flow: 180L/min

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Hydraulic diagram (photo):
