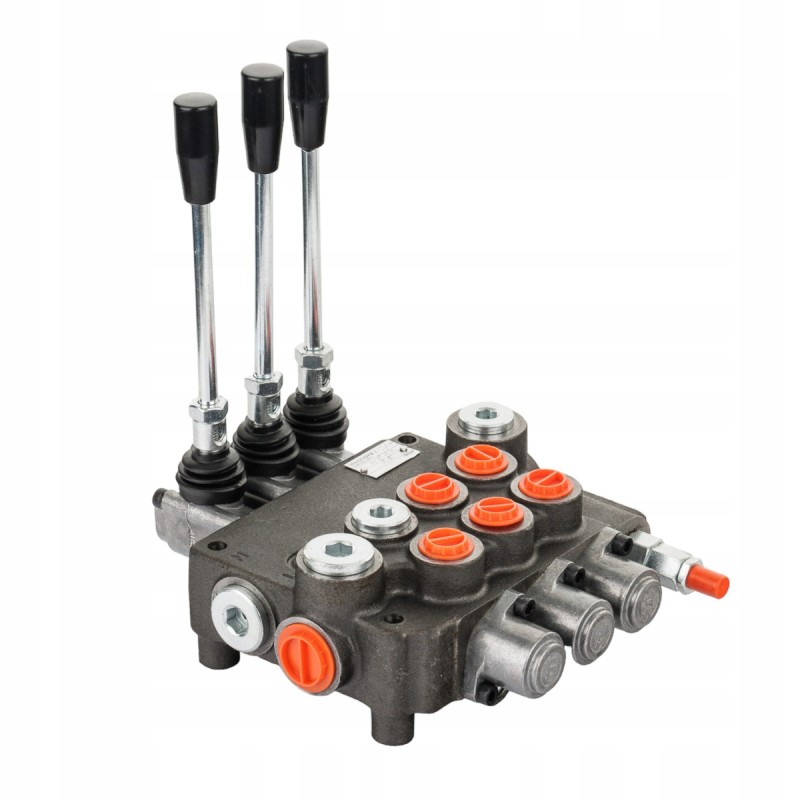

3-section distributor 80l dzj badestnost

3-section hydraulic distributor 80L double-sided section, single-sided section with latch DZJ Badestnost MIZAR number: 75921

3-section hydraulic distributor 1x double-sided section (D), 1x section with latch (Z), 1x single-sided section (J) 80l Badestnost

Widely used in hydraulic systems of machines such as: agricultural tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial and construction machines and municipal. Unlike a standard distributor, in this solution the single-sided actuator falls freely (in the lowering position, the distributor does not block the oil stream returning from the actuator). A section with this solution is very useful in TUR front loaders with single-sided actuators for lifting the main frame. Section arrangement given in order from the safety valve side:

1 - double-acting section (D)

2 - double-acting section with a latch in each position (Z)

3 - single-acting section - 'plunger' (J)

D - regular (unmodified) - for controlling the double-acting cylinder

Z - regular with a latch in every position - allows control hydraulic motors or double-acting cylinders

J - single-sided (modified slider, version A) - port A factory plugged with a plug - this configuration allows you to control a single-acting cylinder (kiper, three-point lift, etc.)

ATTENTION! If a distributor with a latching lever is used to control the actuator, remember that the lever does not automatically snap back after the cycle is completed. The overflow valve will then operate and the pump will be loaded until the lever is manually moved to the neutral position.

Read the detailed description of the functionality of the various types of sections:

https://sklep.mizar.com .pl/zastosowanie-poszczegolne-typow-sekcji-rozdzielaczy-uniwersanych-n-147.html

Controls:

Three-position lever: first and third sections on spring (returns to position on its own) neutral), the second with a latch in each position.

Neutral position 0, the cylinder piston rod is standing - the oil goes to the overflow.

Working position 1 - the cylinder piston rod extends or the hydraulic motor is working.< p>

Working position 2 - the cylinder piston rod retracts or the hydraulic motor works in the opposite direction.

Technical information:

Manufacturer: Badestnost

Control : joystick mounted on the Temp distributor. operation in the range from -15°C to +80°C

Oil flow 80L/ min.

Maximum supply pressure: 250 bar

Maximum supply pressure return: 50 bar

Maximum pressure on the sections: 300 bar

Overflow valve factory set to 175 bar

Connections:

Outlets from sections (A and B) - 1/2' BSP

Supply (P*) - 1/2' BSP

Return (T*) - 3/4' BSP

Pressure output (N*) -3/4' BSP

* - markings embossed on the manifold casing to identify the connections

The manifold is equipped with a non-return valve and an overflow valve , which also serves as a safety valve.

It is possible to adjust the valve yourself, one full turn means a pressure change of approx. 30 bar.

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 75921
