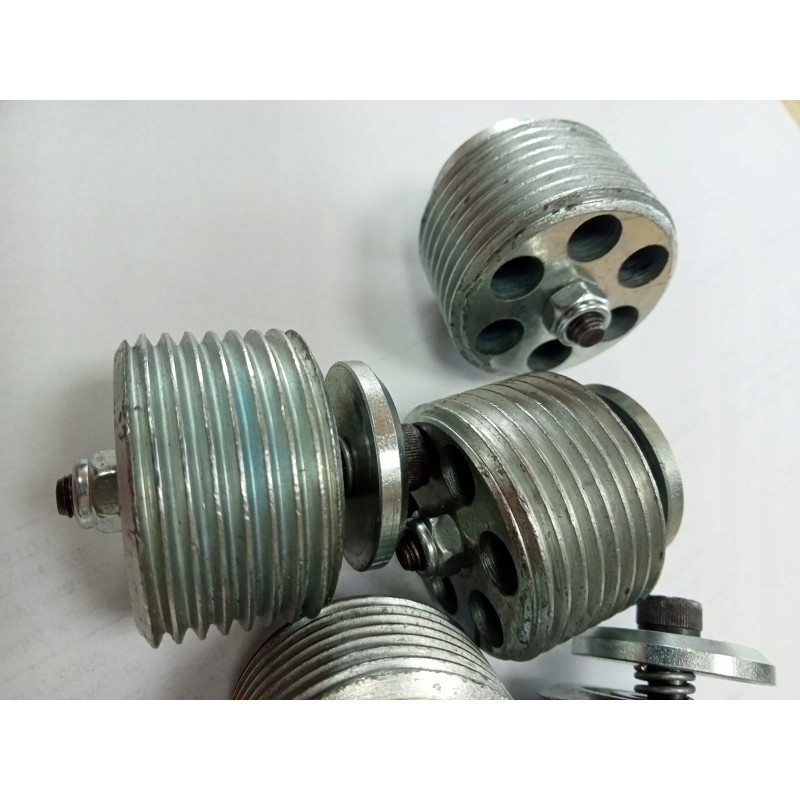

Cartridge for safety valve vuba ab 1 2 sets

TYPE AB 1/2' CARTRIDGE FOR VUBANA HYDRAULIC VALVE CARTRIDGE FOR SAFETY VALVE

Operating temperature - 20 °C/ + 100 °C

Operation pressure up to 420 bar

Available dimensions from 1/4' to 1'

Flow up to 183 L/min

Available threads - BSP,NPT

Material - Carbon Steel

It is widely used in hydraulic systems in agriculture, construction and industry.

The valve is mainly mounted on various types of hydraulic cylinders, e.g. telescopic

in loading trailers.

Protects hydraulic cylinders that are exposed to high pressure forces. It closes the flow of oil

in the event of a failure or breakage of the pipe, protecting against loss of oil contained in

the cylinder and in trailers against sudden lowering of the unloading box.

It is recommended so that the valve is directly screwed to the hydraulic cylinder body. If we use a hose to

connect the valve to the cylinder, it will not be secured.

At our other auctions, you can buy VUBA inserts and bodies separately.
