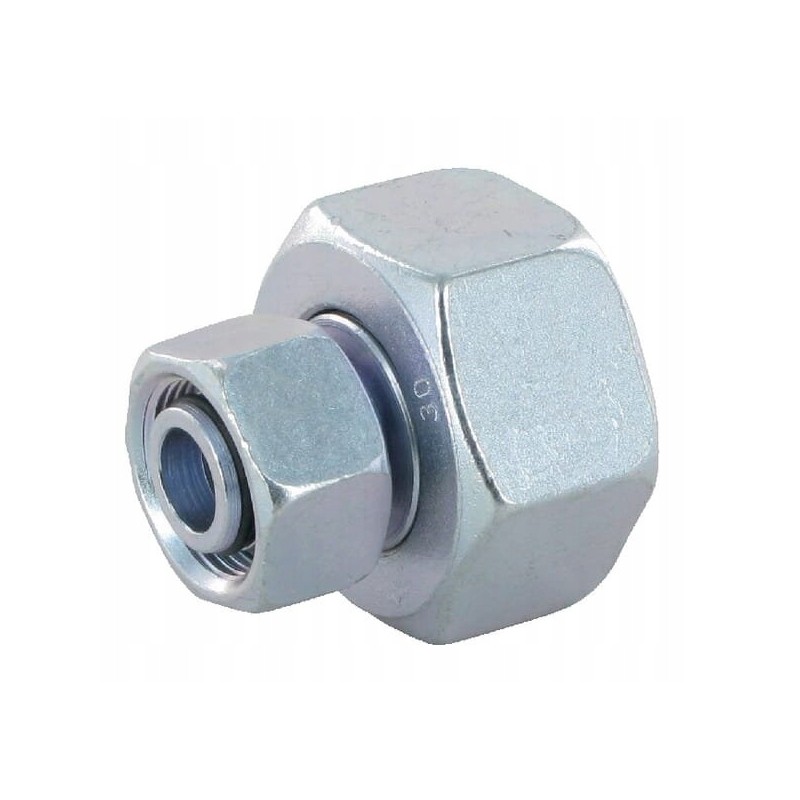

Straight connector with nuts m30x2 22l m36x2 25s

Straight connector with nuts M30x2 22L - M36x2 25S Parameters

Part Number: GVO22L25S

Unit: Piece

Manufacturer: Dietzel

Cone Angle: 24 °

Shape: Straight - 2 Sides Connection

Connector Type No. 1: Swivel Nut

Connector Type No. 1 - Male/Female: Female

Connection Diameter: 22 mm

Connector No. 1 Thread Diameter: M30

Connector No. 1 Thread Pitch: 2.00 mm

Connector Thread Type: Metric

Connector No. 2 Type: Swivel Nut

Connector No. 2 Male/Female Type: Female

Connector No. 2 Diameter: 25 mm

Thread diameter of connection no. 2: M36

Thread pitch of connection no. 2: 2.00 mm

Thread type of connection no. 2: Metric

DIN standard: 2401

Total length: 48 mm

Surface treatment: Zinc plated

Working pressure max.: 160 BAR

Series: L/S

Advantages

- Limited risk of leakage Product details

- Pre-assembled with O-ring - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request - Galvanized, chromium-free CR6

Benefits

- Low risk of leakage Contains

- Corps

- Connecting nut

- Conical seal with O-ring seal Series

- 22L

- 25S
