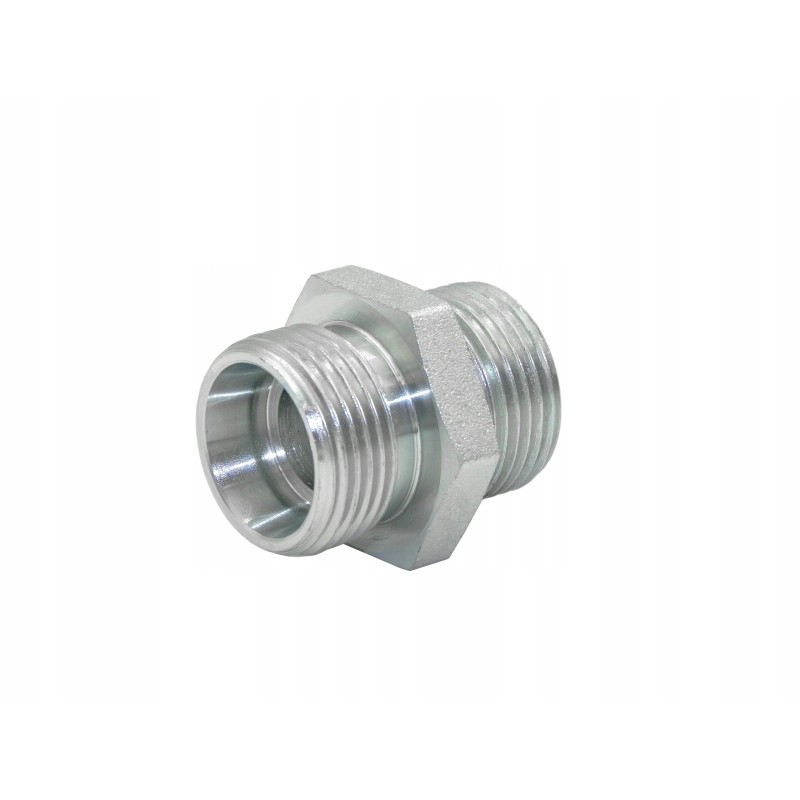

Hydraulic connector metric connector m48x1 5 38l

HYDRAULIC CONNECTOR M48x1.5 38L CONNECTOR Application: Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry. Standardized light version of the connector with a conical clamping self-sealing when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Thread on both sides: external metric 48x1.5 38L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
