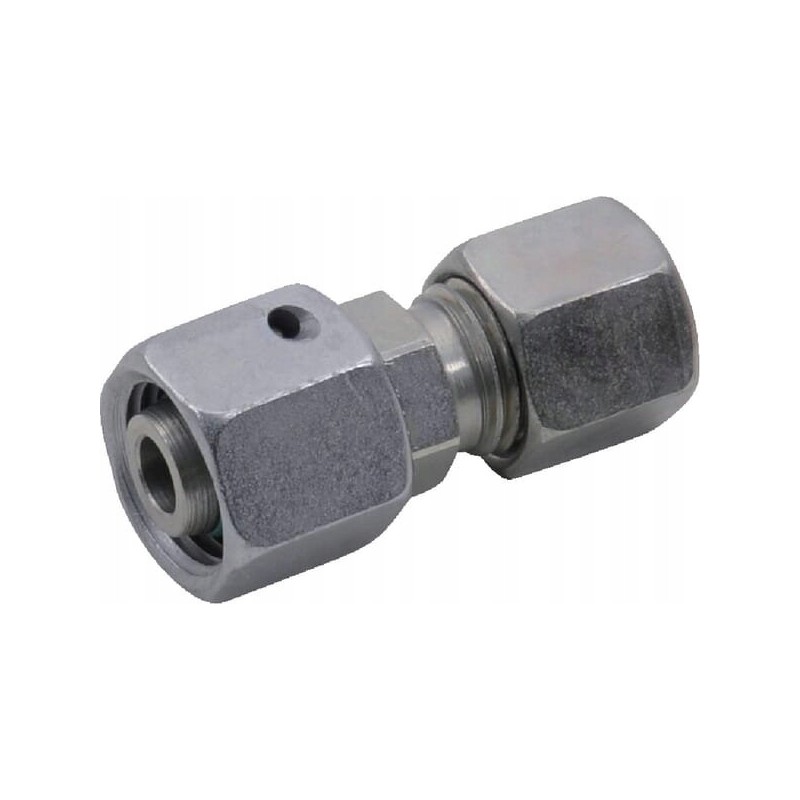

Reducing connector with seals m30x2 22l m26x1 5 18l

Reducing connector with gasket M30x2 22L - M26x1.5 18L Parameters

Part number: REDVD2218L

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type no. 1 - male/female: Female

Connection diameter: 18 mm

Connector no. 1 length: 33.5 mm

Thread diameter Connector No. 1: M26

Connector No. 1 Thread Pitch: 1.50 mm

Connector No. 1 Key Size: 36 mm

Connector No. 1 Key Size: 27.0 mm

Connector No. 2 Male/Female Type: Female

Connector No. 2 Length: 49.5 mm

Thread diameter of connection no. 2: M30

Thread pitch of connection no. 2: 2.00 mm

Thread type of connection no. 2: Metric

Wrench size for connection no. 2: 32.0 mm

DIN standard: 2401

Working pressure max.: 250 BAR

Advantages

- Assembled with end stop

- Limited risk of leakage Product details

- Pre-assembled with O-ring seal - High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request Benefits

- Installation with end stop

- Low risk of leakage Seal material

- Nitrile rubber [NBR]

- Viton

Series

- 22L

- 18L
