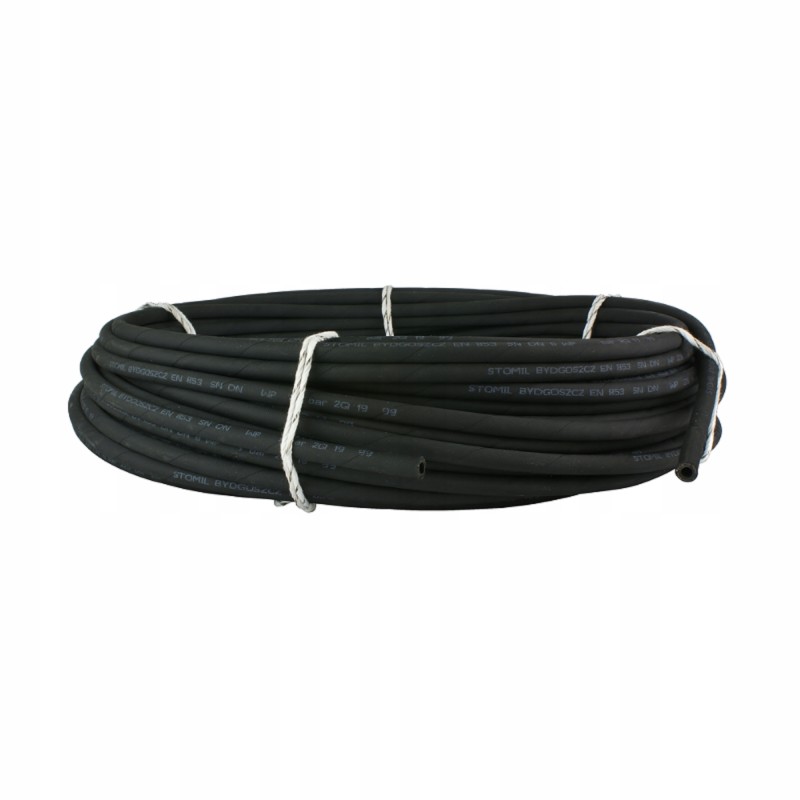

Reinforced hydraulic hose 1sn dn25 88bar stomil

STOMIL BYD HYDRAULIC HOSE. DN25 1SN 88bar 1 INCH 1 PIECE = 1 METER Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.01.025

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 250L/min and a pressure of up to 88bar. The hose fits all fittings and sleeves from the DN25 group, which have the mark 1SN in the symbol.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness.

Outer layer: synthetic rubber resistant to oils, fuels and difficult weather conditions.

Inner reinforcing layer: single steel cross braid.

Operating temperature range of all layers: -40°C to 100°C

Recommended nominal operating pressure max. 88bar.

Test pressure is twice as high as the nominal pressure.

Burst pressure is four times higher than the nominal pressure

Inner diameter of the passage: 25mm

Outer diameter: 35mm

Production: Polish Stomil Bydgoszcz
