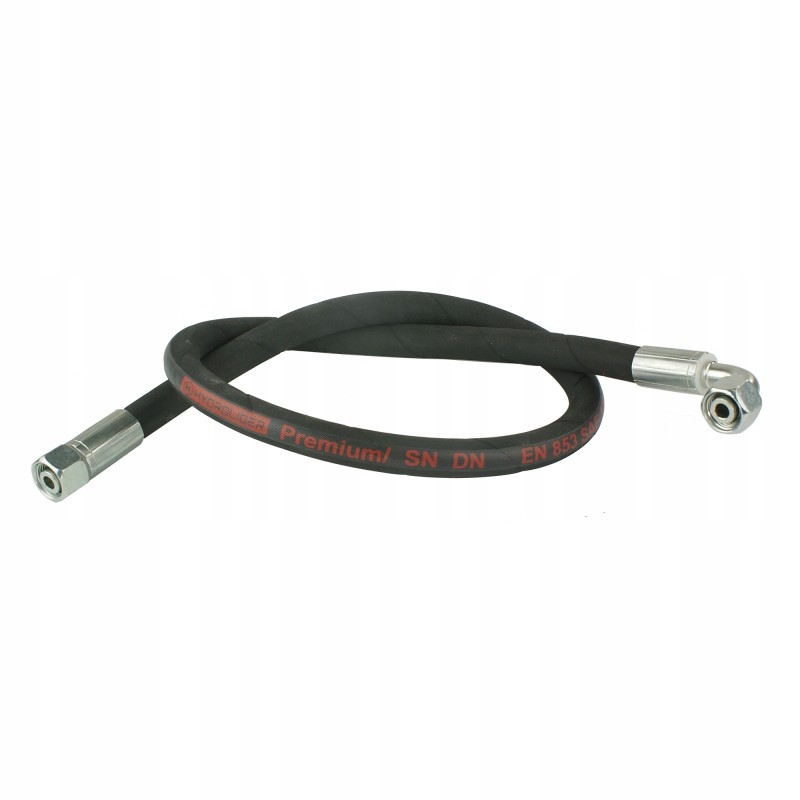

Hydraulic hose line dn6 14 14 ak 500 225bar

HYDRAULIC HOSE ZAKUTYP AK6/1-500.14/14 Production:

Original HYDROLIDER brand hose, symbol: 1.70.04.0500

Application:

Universal, pressure hydraulic hose with self-seal when tightening. It is widely used in hydraulic systems in agriculture and industry. It is used to connect basic hydraulic components, including: pumps, distributors, tanks, actuators, engines, etc.

The cable can be used in hydraulic systems with a maximum pressure of up to 225 bar and a maximum flow of up to 20L/min, in installations operating indoors and outdoors.< p>

Technical data:

The hydraulic hose is crimped, blown (cleaned with pressure from the compressor), ready for connection and operation in the system. The finished hose includes: an original, reinforced and flexible Hydrolider hose and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with clamps: 500mm

Types of clamps:

On one side, type A, straight with a nut M14x1.5

On the other hand, type K angled 90 degrees with M14x1.5 nut

Number of braids: single braid (1SN)

Maximum pressure: 225Bar< p>

Recommended flow in the system: from 1 to 20L/min

Inner diameter of the passage: (DN8): 6mm

Outer diameter of the hose: 13mm

Threads and clamping cone fit all connectors and connections in our offer.
