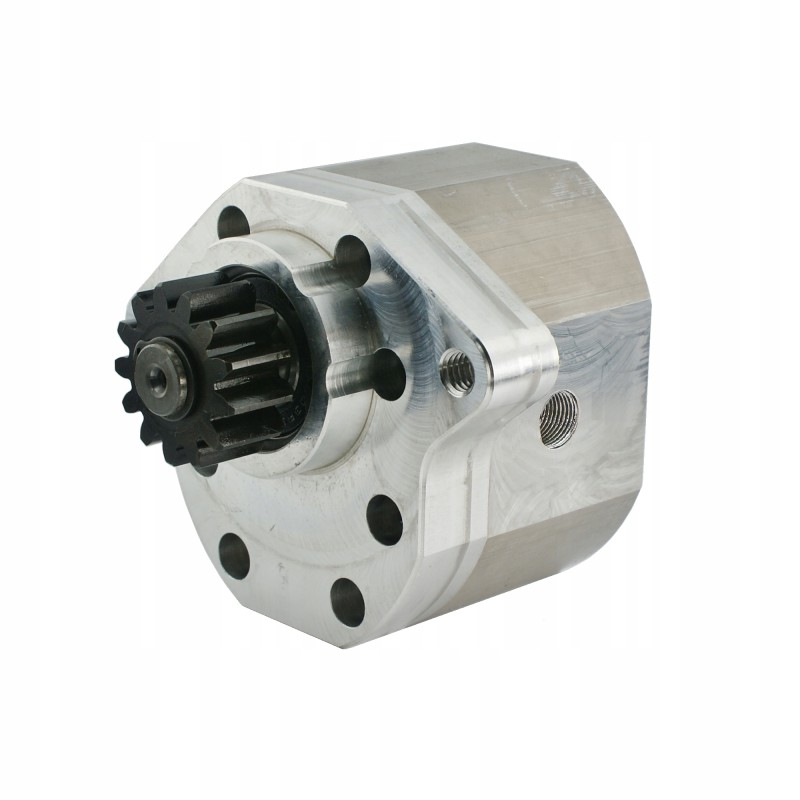

Power steering pump pzs 4 5 mf255 ursus 3512 3p

POLISH HYDRAULIC PUMP POWER STEERING URSUS 3512 and MF 255 Production:

Original product of the Hylmet Polska brand, symbol: PZS-4.5 MF3.2, 7010096M91, PZT-4.5/10-K, 1.40.20.011

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

The pump is primarily intended for controlling the original Agricola steering system in URSUS 3512 and MF 255 tractors. Mounted on the right side of the starter wheel, driven by the timing.

Technical data:

Capacity: 6.9L/min (at 1500 rpm)< p>

Capacity: 16.5L/min (at 4000 rpm)

Geometric volume: 4.6cm3/rev

Direction of rotation: right

Rotation range: 800 - 4000 (rpm)

Internal threads M20x1.5

Operating parameters:

Maintaining the pump operation according to the nominal parameters ensures the longest service life. Operation at maximum parameters is permissible, but it shortens the pump's life.

Nominal pressure: 12 MPa

Maximum pressure: 16 MPa
