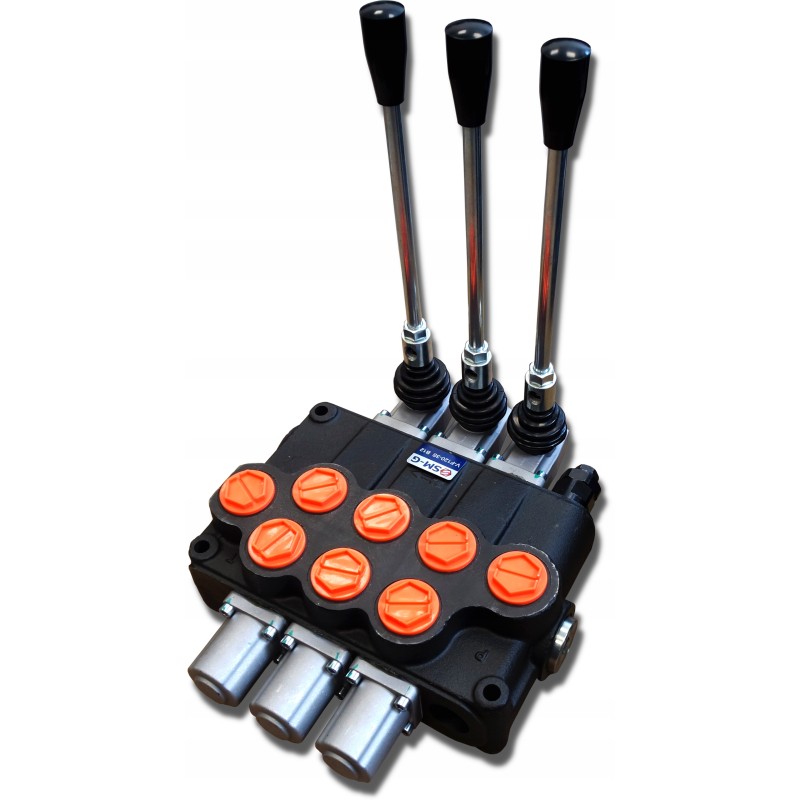

3-section hydraulic distributor, 120l, lever

3-SECTION HYDRAULIC DIVIDER 120LKOD SKRAW MET: [3586] Manufacturer: SM-G (SKRAW MET GROUP) The high-quality, monoblock distributor is characterized by a compact structure, stable operation and high versatility.

It enables the control of three double-acting cylinders .

It is possible to connect in series to an existing system.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture and horticulture , forestry and construction.

The universal distributor is used in various types of machines such as: Cyclops

Tury

Loaders

Plows

Forklifts and many others

Three-position lever (1 - 0 - 2) on a spring returns to the vertical position by itself

Neutral position 0 (lever set vertically) piston rod the actuator is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set in a backward diagonal position) ) the actuator piston rod retracts.

Connection: Power supply (P) BSP 1''

Return (T) BSP 1''

Exit to the BSP 1 sections ''

BSP 1 connection'

Technical specifications: Oil flow: 0 - 120 l/min

Maximum working pressure: 200 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with a safety valve.
