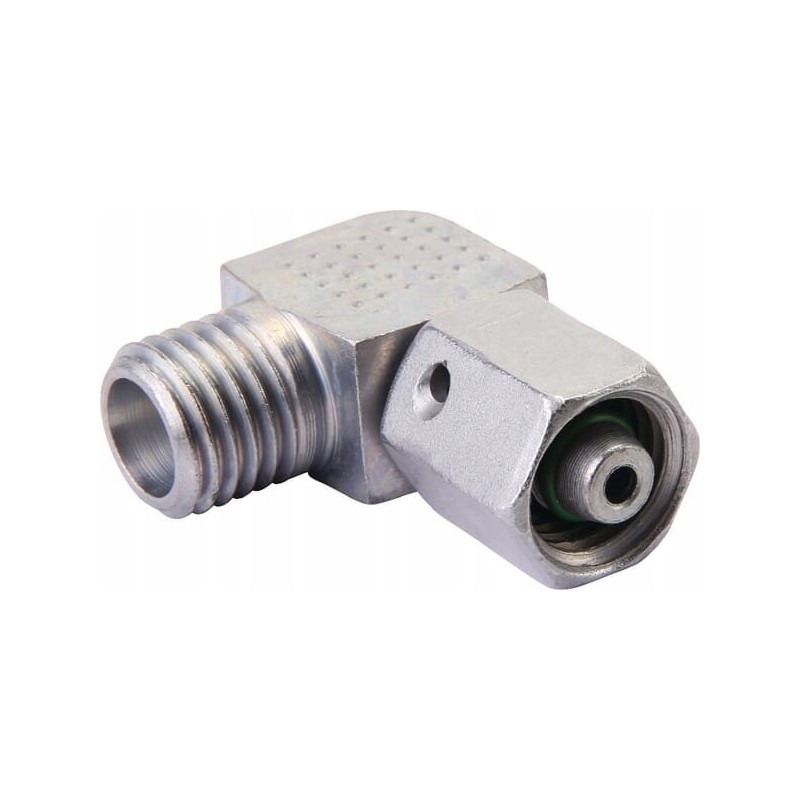

Elbow connector with nut m16x1 5 10l ewsd10l vo

Elbow connector with nut M16x1.5 10L Parameters

Part number: EWSD10L

Unit: piece

Manufacturer: Voss

EAN: 8716106786206

Properties: - High corrosion resistance

Shape: Elbow - 2 sides of the connection

Connection type: Swivel nut

Connection type - male/female: Female

Connection diameter: 10 mm

Connector thread diameter: M16

Connector No. 1 thread pitch: 1.5 mm

Connector Thread Type: Metric

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector No. Thread Diameter 2: M16

Connector #2 Thread Pitch: 1.5mm

Connector #2 Thread Type: Metric

Connector #2 Wrench Size: 19mm

Pipe diameter: 10 mm

DIN standard: 2401

Angle: 90 °

Max working pressure: 500 BAR

Seal material on pipe side: Viton

Series: L

L2: 30 mm

Mounting size 4: 14 mm

Installation size: 15 mm

M thread: M16x1.5 mm

Spanner size [S2]: 19 mm

Specifications

- Pre-assembled O-ring

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

- Viton

gasket available on request
