Tekalan fitting on a diameter 12 tube, nut M18x1 5

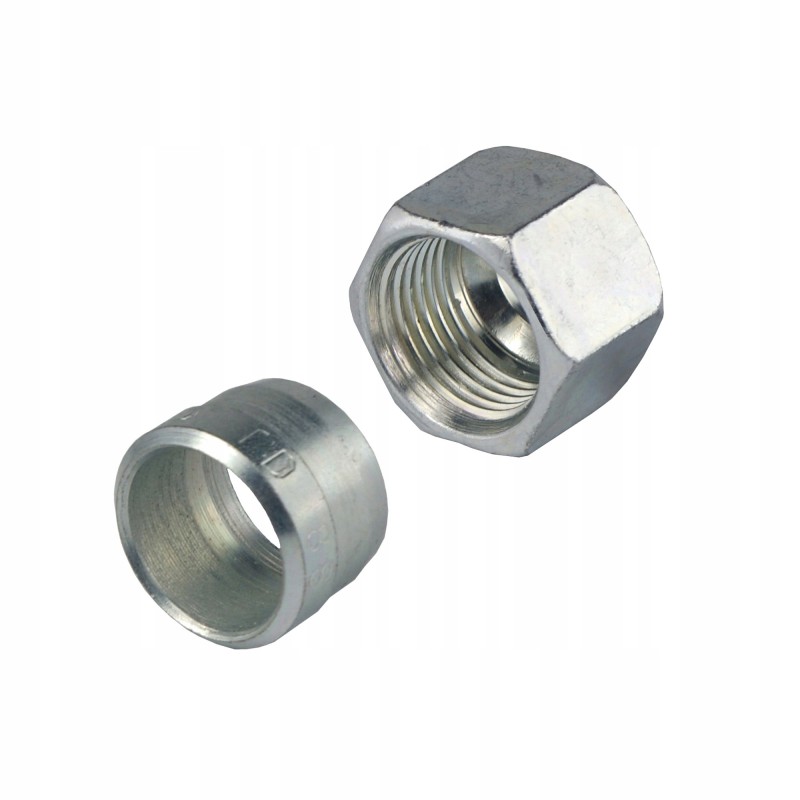

COMPLETE TEKALAN FITTINGNUT 18x1.5 + TUBE RING 12mmProduction:

Hydrolider, symbol: 1.60.62.009

Application:

It is widely used in hydraulic systems in agriculture , horticulture, forestry, construction and broadly understood industry.

A complete TEKALAN clamping set mounted on a hydraulic pipe. Metal pipes are a solid carrier of the oil flow in the hydraulic system. Compared to hydraulic hoses, tubes are characterized by longer service life, resistance to weather conditions and resistance to very high pressures.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

1 piece equals 1 set of nut + ring

Nut, metric thread 18x1.5

Ring intended for a 12mm pipe

Maximum pressure: 240 bar

Material :

steel

TEKALAN rings and nuts are necessary to install metal pipes in the hydraulic system.

The TEKALAN system does not require additional sealing work during installation, e.g. . welding or welding. Sealing occurs automatically, the ring seals the connection when the nut is tightened.

Example application:

installation of the so-called VBPDE valve. LOCK on the hydraulic cylinder using TEKALAN tubes and connectors:
