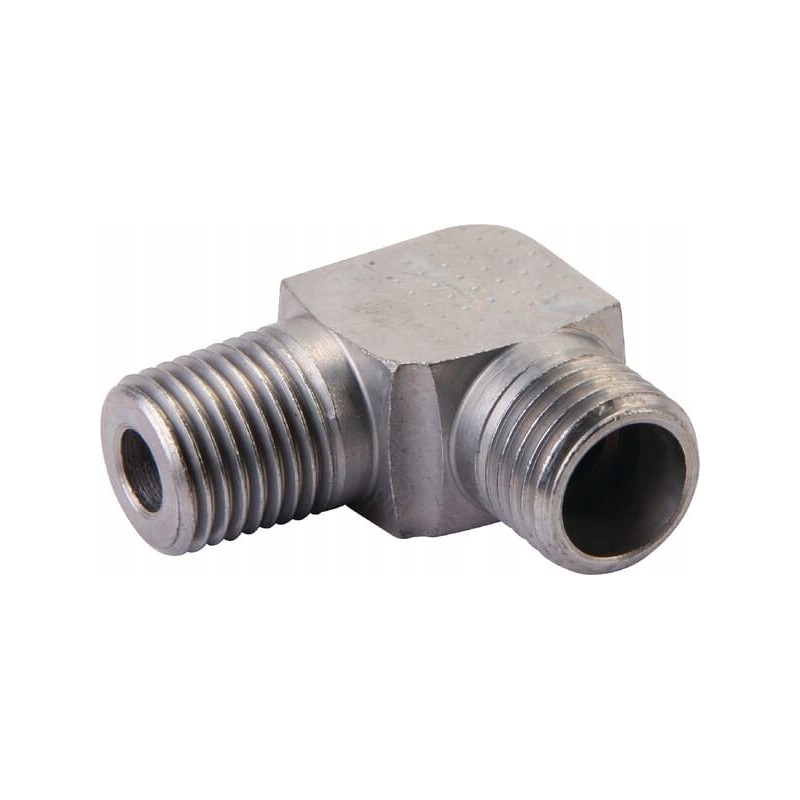

Angle connector gz npt wes 6s m14x1 5 1 4

Angle connector external thread NPT WES, 6S M14x1.5 1/4' Parameters

Part number: WES6S14NPT

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 sides of connection

Connector thread diameter: 1/4 inch

Connector thread length: 15.1 mm

Thread type Connectors: NPT

Connection #1 Wrench Size: 17.0mm

Connector #2 Type - Male/Female: Female

Connection #2 Diameter: 6mm

Connection No. 2 thread diameter: M14

Connection No. 2 thread pitch: 1.50 mm

Connection No. 2 thread type: Metric

Wrench size for connector no. 2: 14.0 mm

Pipe diameter: 6 mm

ISO standard: 228

Inner diameter: 4 mm

Body height: 14 mm

Angle: 90 °

Surface treatment: Galvanized

Max working pressure: 630 BAR

Series: S

Max tightening torque: 35 N m

Dimension from the axis of the connector to the end of the next connector

16 mm

Dimension from the axis of connector no. 2 to the end of the next connector

26 mm

DIN standard

- 2353

- 228

- 3852

- 2401
