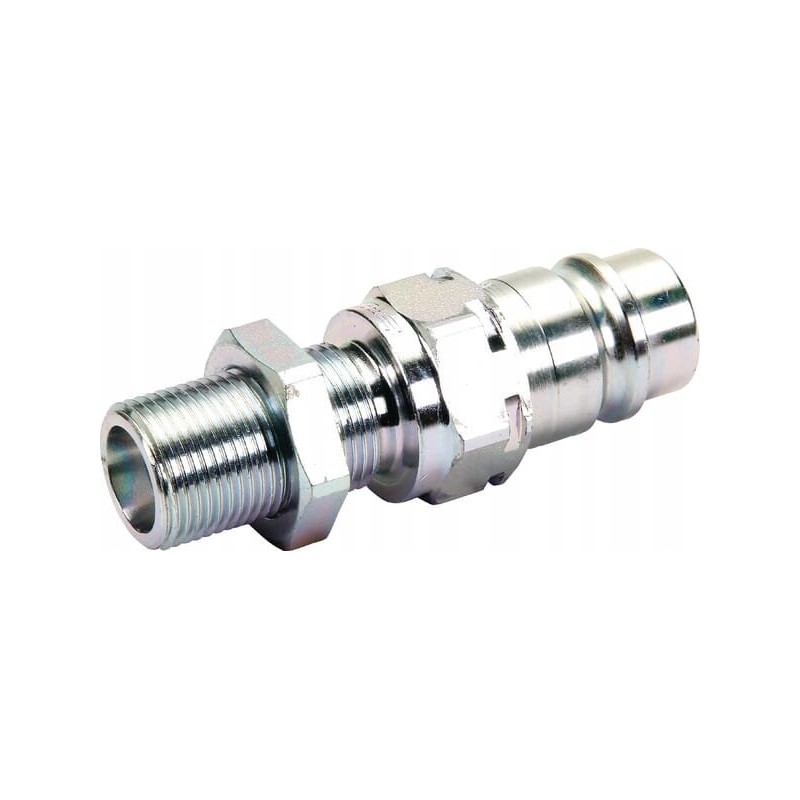

Quick connect cnv plug 1 2 bulkhead thread

Quick connector CNV plug 1/2' bulkhead thread M20x1.5 12S Parameters

Part number: CNV0862015M

Unit: piece

Manufacturer: Faster

Size: 1/2 inch

Shape: Straight - 2 sides connector

Connector type no. 1: Quick connector

Connector no. 1 thread type - code: 06

Connector type no. 1 - Male/Female: Male

Connector No. 1 Diameter: 20.5 mm

Connector No. 1 Thread Diameter: 20 mm

Outer Diameter: 1.18 inch

Material: Carbon Steel

Surface Treatment: White Passivated

Working Pressure: 300 BAR

Maximum operating temperature: 125 °C

Min. operating temperature: -25 °C

Quick connector lock type: Balls around the circumference

Connector no. : Pull to Disconnect

Series: CNV

Valve Type: Poppet

Weight: 166.6 g

Connector #1 Wrench Size: 27 mm

Connector #1 Thread Type: Metric

Connector #2 Type: Thread

Connector #2 Type - male/female: Male

Connection no. 2 diameter: 12 mm

Connector no. 2 thread diameter: M20

Connector no. 2 thread pitch: 1.5 mm

Connector no. 2 thread type: Metric

Possibility of connection under pressure: Yes

Length total: 3.19 inch

Diameter at plug end: 20.5 mm

Application

- Universal use

- Agricultural machinery

- Mineral oil based fluids Properties

- Induction hardening in places exposed to rapid wear - Fits CPV Faster

sockets Technical information

- Connection is made by pressing the plug (one-handed operation). Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)

ISO standard

- 7241-A

- 8434-1-S
