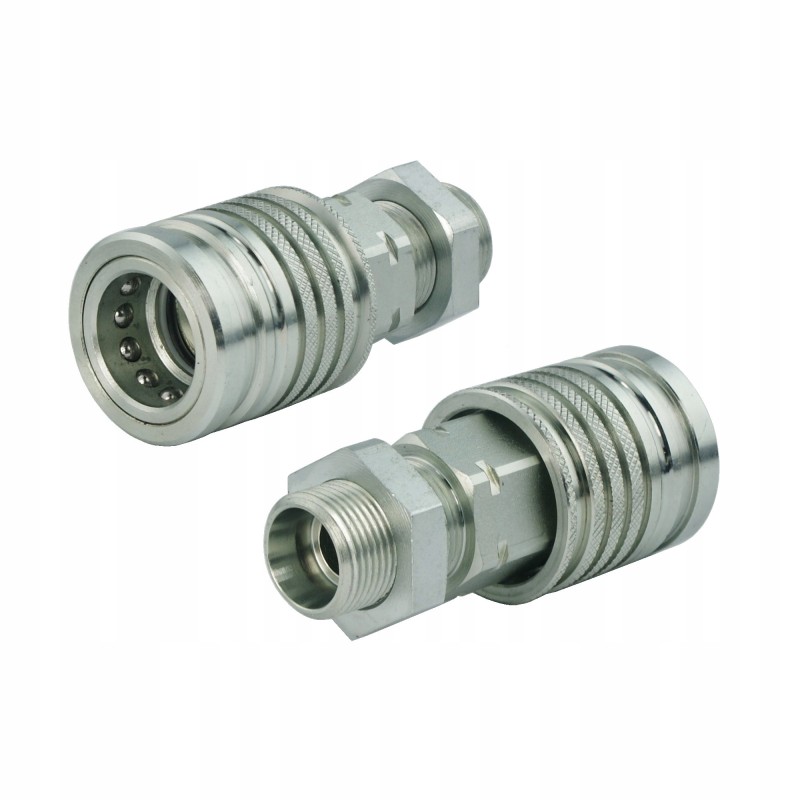

Hydraulic quick connector Euro socket M18 long

HYDRAULIC QUICK CONNECTOR, TYPE EURO THREAD 18x1.5 LONG BULKBULDDER Production:

Original product of the Hydrolider brand, symbol: 1.60.55.031

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used for quick connecting and disconnecting individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Diameter internal [mm]: 16.2 - 16.6

Technical data:

Thread on the cable side: external metric 18x1.5

Thread type: long bulkhead, external

Nut included: YES

Clamping cone angle: 24° (typical for Polish standard)

Quick connector type: euro bulkhead socket ISO standard

Material: galvanized steel

Weight: 0.35 kg

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
