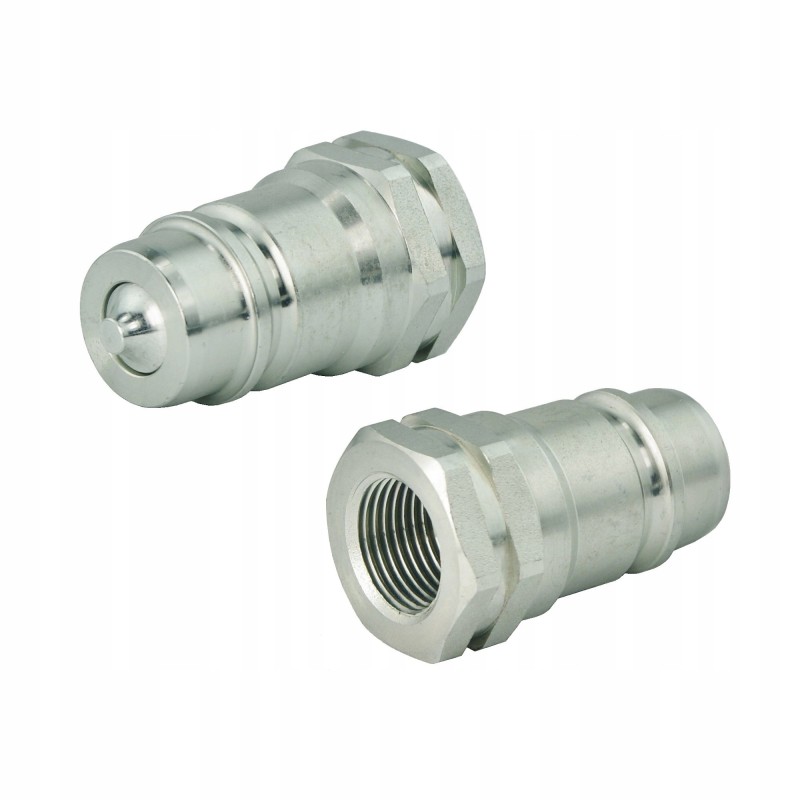

Hydraulic quick connector, euro plug, internal thread 3 4

HYDRAULIC QUICK CONNECTOR PLUG TYPE EURO INTERNAL THREAD 3/4' Production:

Original product of the Hydrolider brand, symbol: 1.60.55.138

Application:

It has a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

BSP 3/4' thread diameter measured with a caliper:

Outer diameter [mm]: 26.1 - 26.4

Inner diameter [mm]: 24.1 - 24.5

Technical data:

Cable side thread: inch BSP 3/4'

Thread type: internal

Quick connector type: euro plug ISO standard

Material: galvanized steel

Weight: 0.25kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant< p>
