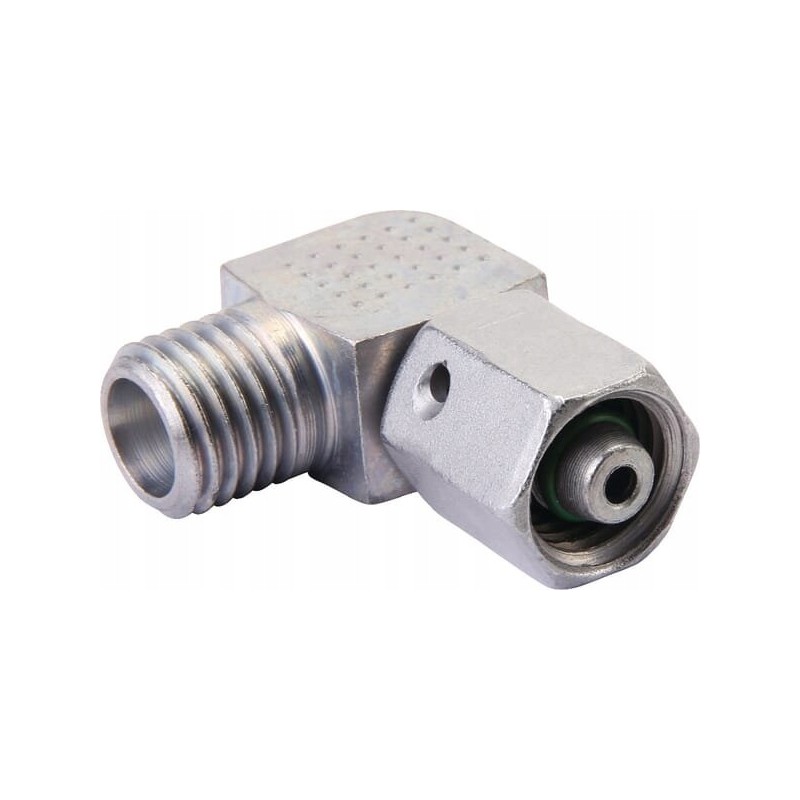

Adjustable elbow connector 28l ewsd28l voss

Adjustable elbow connector 28L Parameters

Part number: EWSD28L

Unit: piece

Manufacturer: Voss

EAN: 8716106786633

Features: - High corrosion resistance

Shape: Elbow - 2 sides of connection

Connector type: Swivel nut

Connector type - male/female: Female

Connection diameter : 28 mm

Connector Thread Diameter: M36

Connector No. 1 Thread Pitch: 2 mm

Connector Thread Type: Metric

Connector Wrench Size: 36 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector #2 Thread Diameter: M36

Connector #2 Thread Pitch: 2 mm

Connector #2 Thread Type: Metric

Wrench Size for Connector #2: 41 mm

Pipe Diameter: 28 mm

Length: 30.5 mm

Angle: 90 °

Working pressure max.: 250 BAR

Seal material on the pipe side: Viton

Series: 28L

Installation size 2 [L1]: 415 mm

Installation size [L]: 30.5 mm

Pressure: PN ( nominal pressure) and Temperature acc. to DIN 2401. BAR

S2: 41 mm

L2: 47 mm

Installation size 4: 36 mm

Thread M: M36x2

Spanner width [S2]: 41 mm

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint 41.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 38mm

Internal diameter

- 24 mm

- 22 mm
