Pgso1320 tip dn13 m20x1 5 12s

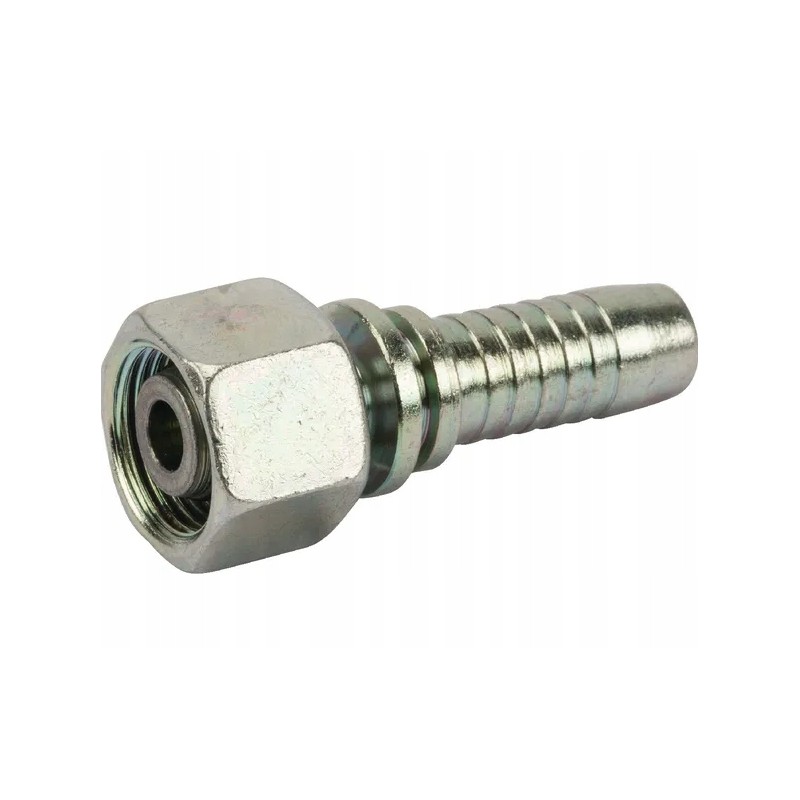

PGSO1320 End DN13-M20x1.5-12S Product details

Cone, cone seal with O-ring

S series cutting ring connection

Includes

Tips

O-ring

Cone angle

24 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Swivel nut

Connector type no. 1 - male/female

Female< p>

Type of connector no. 1 - code

DKOS

Length of connector no. 1

31.9 mm

Diameter thread of connector no. 1

M20

Thread pitch of connector no. 1

1.50 mm

Type of connector thread

Metric

Wrench size for connector #1

24.0 mm

Connector type #2

Hose barb

Connector Type No. 2 - Male/Female

Male

Diameter of Connection No. 2

1/2 inch

Diameter of Connection No. 2

13 mm

Material

Steel

Surface treatment

Galvanized

Passivated white

Series

12S

Connection

xx

Type

DKOS
