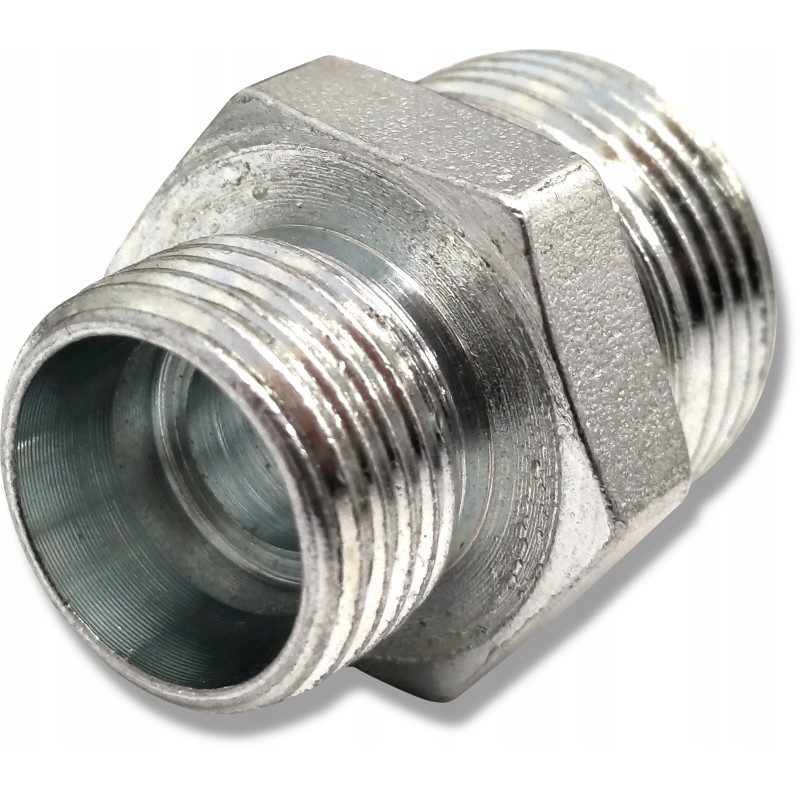

Straight hydraulic reduction nipple m18 m14 connector
  • Straight hydraulic reduction nipple m18 m14 connector
  • Straight hydraulic reduction nipple m18 m14 connector

Straight hydraulic reduction nipple m18 m14 connector

15012907164054
SM-D
£12.25
Quantity
5 Items

Description
STRAIGHT HYDRAULIC REDUCTION NIPEL M14 M18 SKRAW-MET CODE: [1802]

Application:

Hydraulic reduction works perfectly in hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is used to connect the main components in the hydraulic system with hydraulic lines.

Responsible for connecting the hydraulic line or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 33mm

Nominal diameter of the passage: 6mm

M1 thread on the cable side: external metric 14x1.5

M2 thread on the cable side: external metric 18x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

[1802]

Material:

weldable steel, galvanized, corrosion-resistant

Product Details
SM-D
15012907164054
1802.14-18GG
5 Items
New

Data sheet

Manufacturer
SM-D
Part Number
1802.14-18GG
