Skpf12s20 quick connector iso 12 5 m20x1 5 12s

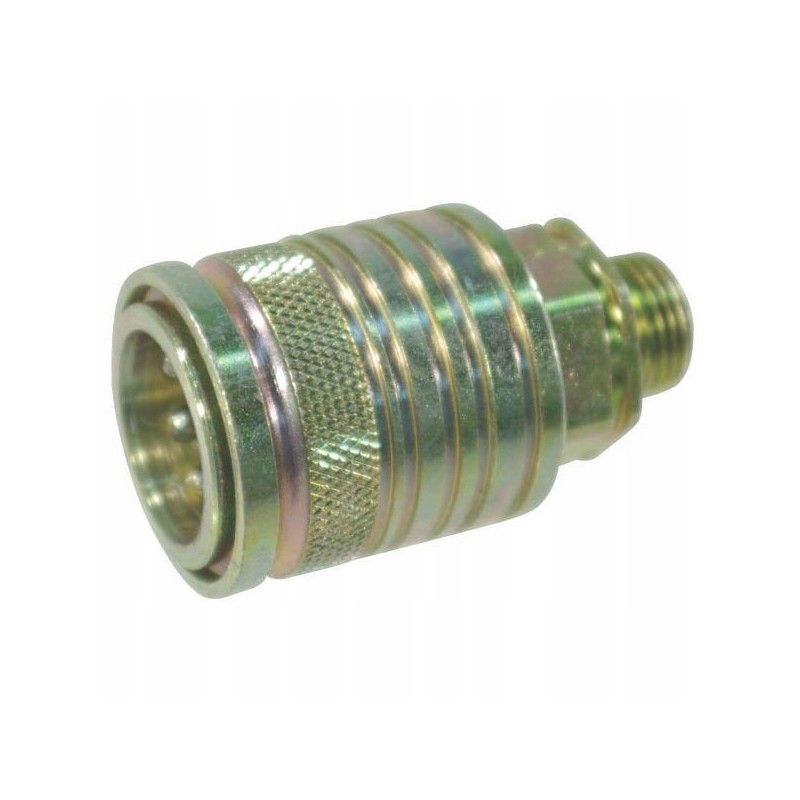

Quick connector ISO 12.5 M20x1.5-12S - socket INDEX: SKPF12S20

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil based fluids

Outside diameter: 38mm

ISO standard: 7241-1-A

Connection: dB

Connection diameter: 20.5mm

Surface treatment: White passivated

Total length: 71mm

Seal material: Nitrile rubber [ NBR]

Teflon (PTFE)

Interchangeable with: Faster CPV / Faster CNV / Faster ANV

Working pressure: 250BAR

Connector type no. 2 - male/female: Male

Possibility of connecting under pressure: No

Working temperature max: 100°C

Minimum operating temperature: -30°C

Connection type: socket

Connection no. 2 diameter: 12mm

Connector no. 2 thread pitch: 1.5mm

Connector no. 2 type: Thread

Connection no. 2 thread diameter: M18

Size (code ): BG 3

Connection thread type no. 2: Metric

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Female
