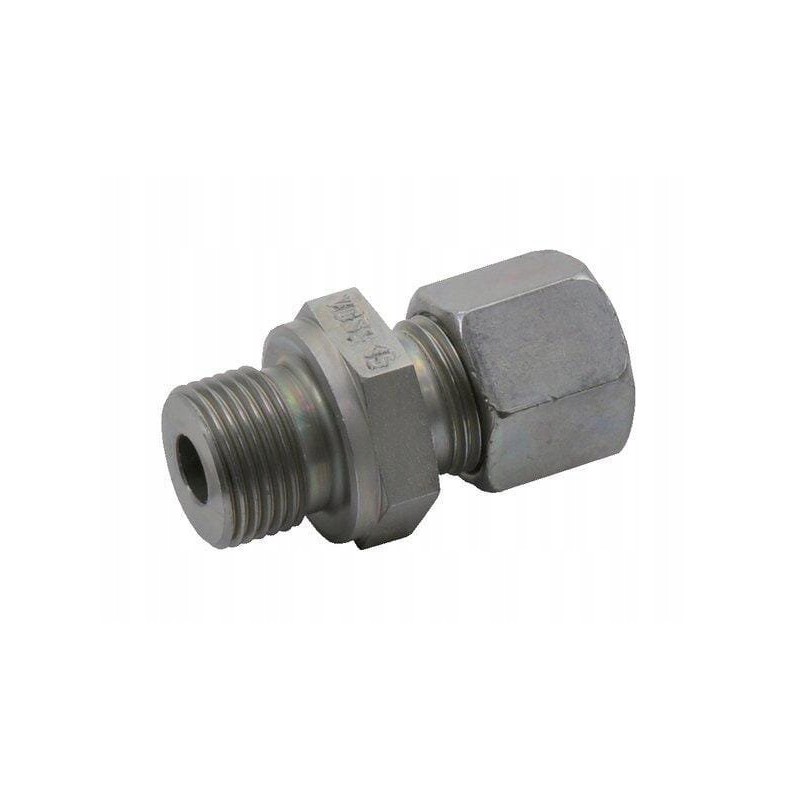

Straight connection with nuts m30x2 20s r1 2

Straight connection with nut M30x2 20S R1/2 Parameters

Part Number: GEV20SR12

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 Sides Connector

Connector Type No. 1: Cutting Ring

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 20 mm

Connector No. Thread Diameter 1: M30

Connector Thread Length: 14 mm

Connector No. 1 Thread Pitch: 2.00 mm

Connector Thread Type: Metric

Wrench Size for Connector No. 1: 36.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/ female: Male

Connection No. 2 thread diameter: 1/2 inch

Connection No. 2 thread type: BSP

Wrench size for connector No. 2: 32.0 mm

Pipe diameter: 20 mm

ISO standard: 228

Max working pressure: 200 BAR

Series: 20S

Advantages

- Cutting ring 2S

Product details

- 2S cutting ring - Optimum connection to the cutting ring and perfect function - High corrosion resistance - Hydraulic hoses

- Hydraulic pipes

Dimension from the axis of the joint to the end of the next joint 42mm

Dimension from the axis of joint no. 2 to the end of the next joint 20.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
