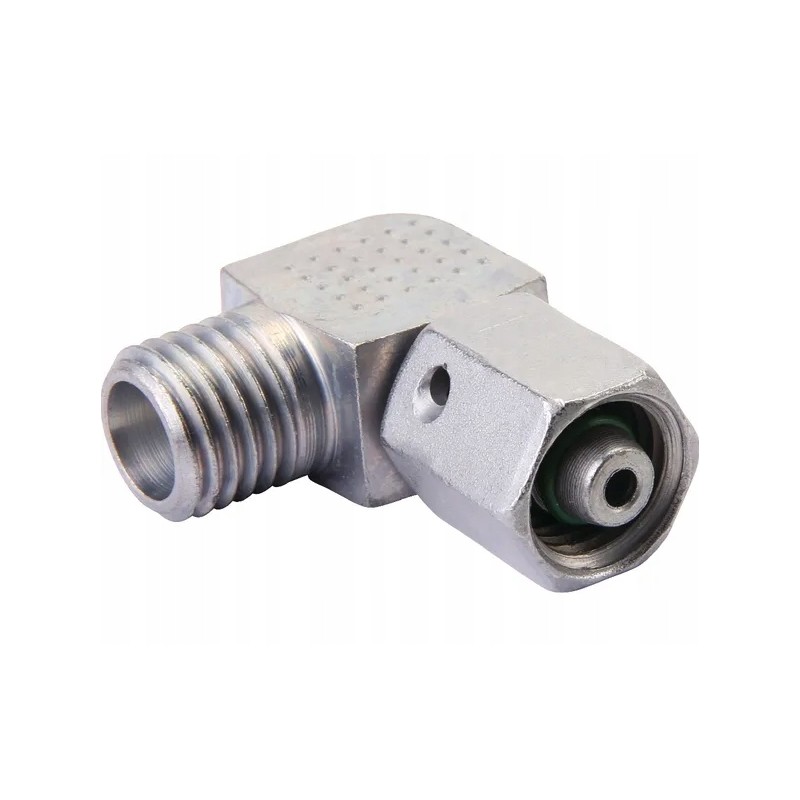

Ewsd12s adjustable elbow connector 12s

EWSD12S Adjustable Elbow Connector 12SEAN

8719607088046

Benefits

Limited risk of leakage

Product details

Pre-assembled with O-ring seal

For direct connection to metric hose nut or pre-assembled connector

High corrosion resistance

Shape

Elbow - 2 sides connection

No.1 Connector Type

Swivel Nut

No.1 Connector Type - Male/Female

Female

Connection Diameter

12mm

No.1 Connector Thread Diameter

M20

No.1 Connector Thread Pitch

1.50mm

Connector Thread Type

Metric

Size wrench for connector no. 1

17.0 mm

Type of connector no. 2

Cutting ring

Type of connector no. 2 - male/female

Male

Thread diameter of connector no. 2

M20

Thread pitch of connector no. 2

1.50 mm

Thread type of connector no. 2

Metric

Wrench size for connector #2

24.0 mm

Dimension from the centerline of the connector to the end of the next connector

38 mm

Dimension from the centerline of the connector to the bottom of the next connector

31 mm

Dimension from the centerline of connector #2 to the end of the next connector

21, 5 mm

Pipe diameter

12 mm

DIN standard

2401

Inner diameter

8 mm

Length

21.5 mm

Angle

90 °

Working pressure max.

630 BAR

Seal material on pipe side

Viton

Series

12S
