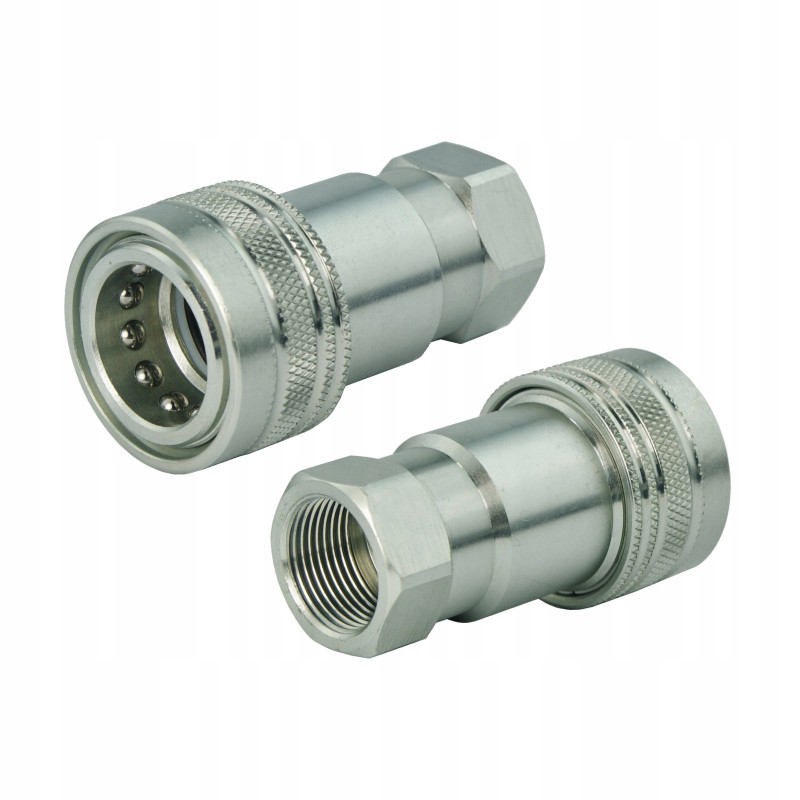

Euro hydraulic quick connector, M18 internal socket

HYDRAULIC QUICK COUPLING SOCKET EURO TYPE INTERNAL THREAD 18x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.60.55.034

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Thread on the cable side: metric 18x1.5

Thread type: internal

Quick connector type: euro socket ISO standard

Material: galvanized steel

Weight: 0.30kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
