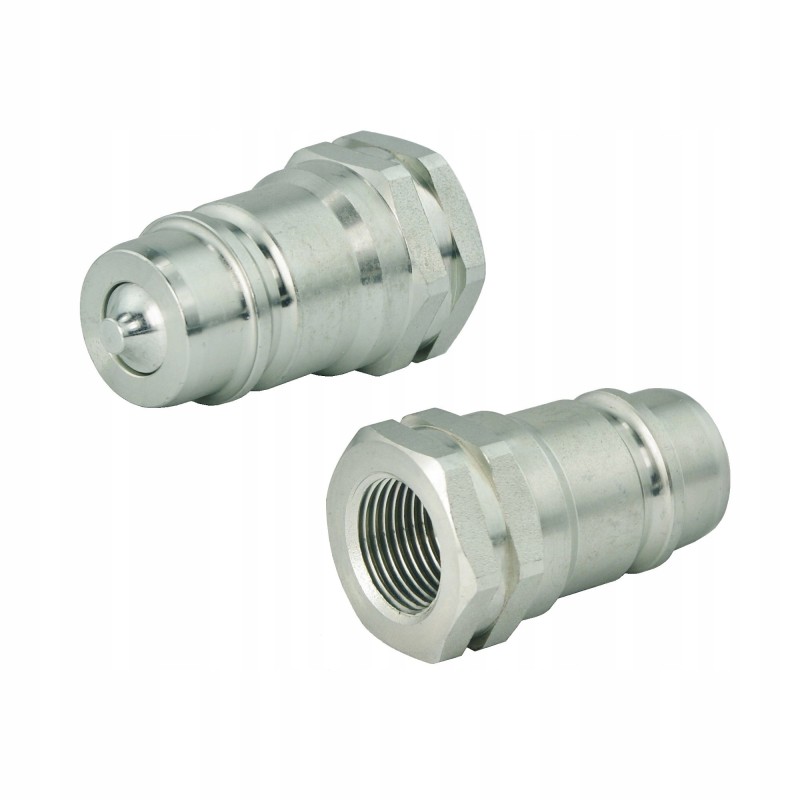

Euro hydraulic quick connector, M22 internal plug

HYDRAULIC QUICK CONNECTOR PLUG TYPE EURO INTERNAL THREAD 22x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.60.55.135

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

Technical data:

Thread on the cable side: metric 22x1.5

Thread type: internal

Quick connector type: euro plug ISO standard

Material: galvanized steel

Weight: 0.15kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
