Hydraulic actuator 80 45 250 l 593 power hydrolider

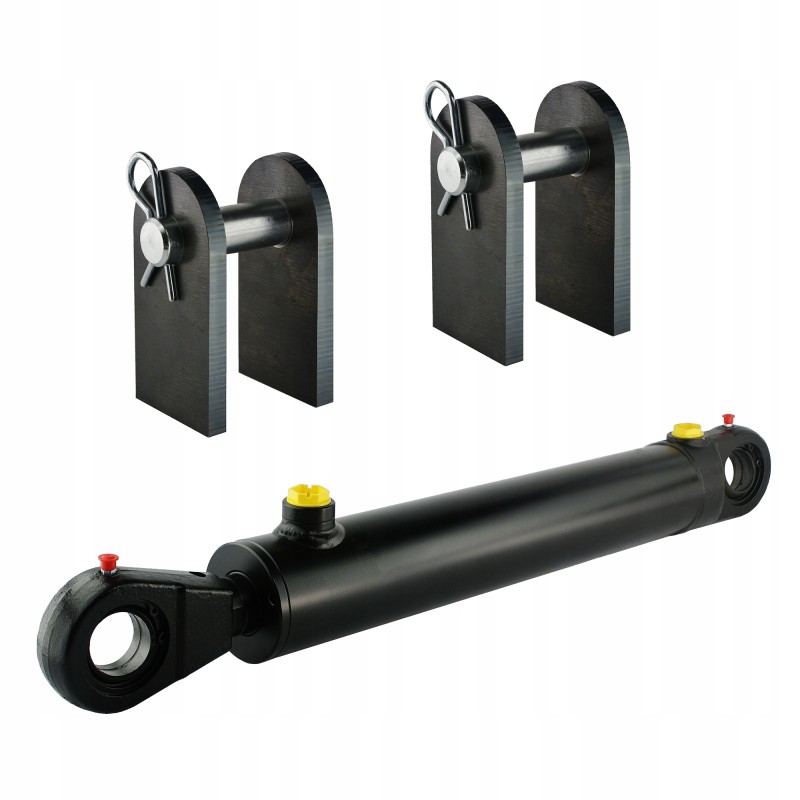

DOUBLE-ACTING HYDRAULIC CYLINDER COMPLETE WITH TWO MOUNTINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 1.32.60.102.3, CJ2F 80/45/250 U40

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

The actuator is adapted to various types of agricultural machines such as: hydraulically foldable aggregates and harrows, rounds, wood splitters wood and many others.

General information:

Tube-side head mounting: welded

Bar-side head mounting: screw-on

Type of stuffing box (closing cap): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Outer diameter of the piston (pipe) : 92mm

Inner diameter of the piston (pipe): 80mm

Piston rod (rod) diameter: 45mm

Pin hole diameter: 40mm

Stroke (working movement) of the piston rod: 250mm

Length in the rest state measured in the axes of the holes: 593mm

Internal threads for connections: M27x2

Operating parameters:< p>

Maximum permissible operating pressure: 240 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
