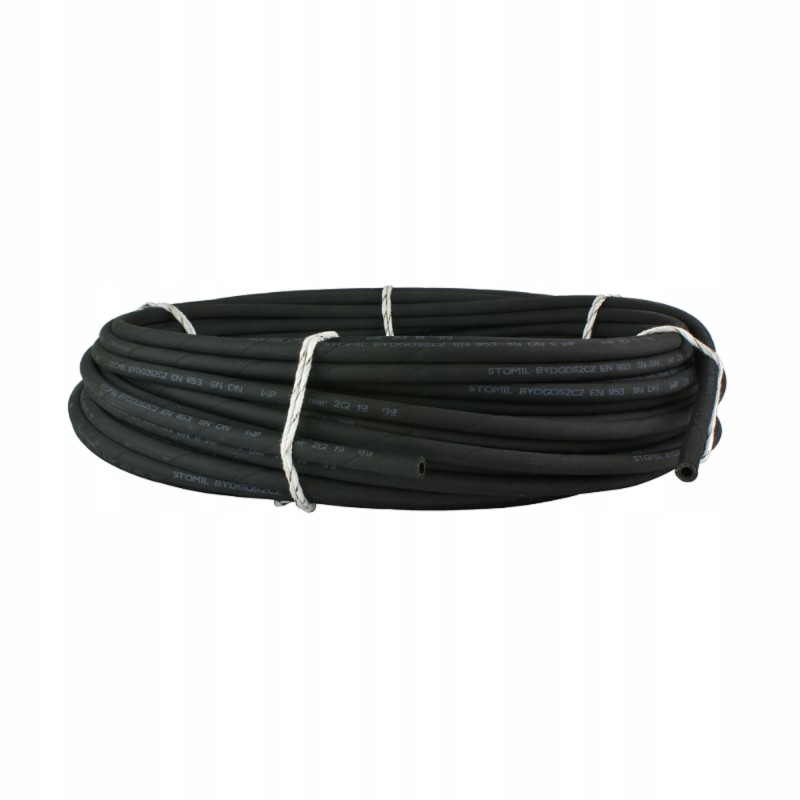

Reinforced hydraulic hose 2sn dn25 165bar stomil

HYDRAULIC HOSE STOMIL BYD. DN25 2SN 165bar 1 INCH 1 PIECE = 1 METER Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.02.025

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 250L/min and a pressure of up to 88bar. The hose fits all fittings and sleeves from the DN25 group, which have the symbol 2SN in their symbol.

.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness.

Outer layer: oil-resistant synthetic rubber, fuel and difficult weather conditions.

Reinforcing inner layer: single steel cross braid.

Operating temperature range of all layers: -40°C to 100°C

Recommended nominal operating pressure max. 165bar.

Test pressure is twice as high as the nominal pressure.

Burst pressure is four times higher than the nominal pressure

Inner diameter of the passage: 25mm

Outer diameter: 38mm

Production: Polish Stomil Bydgoszcz
