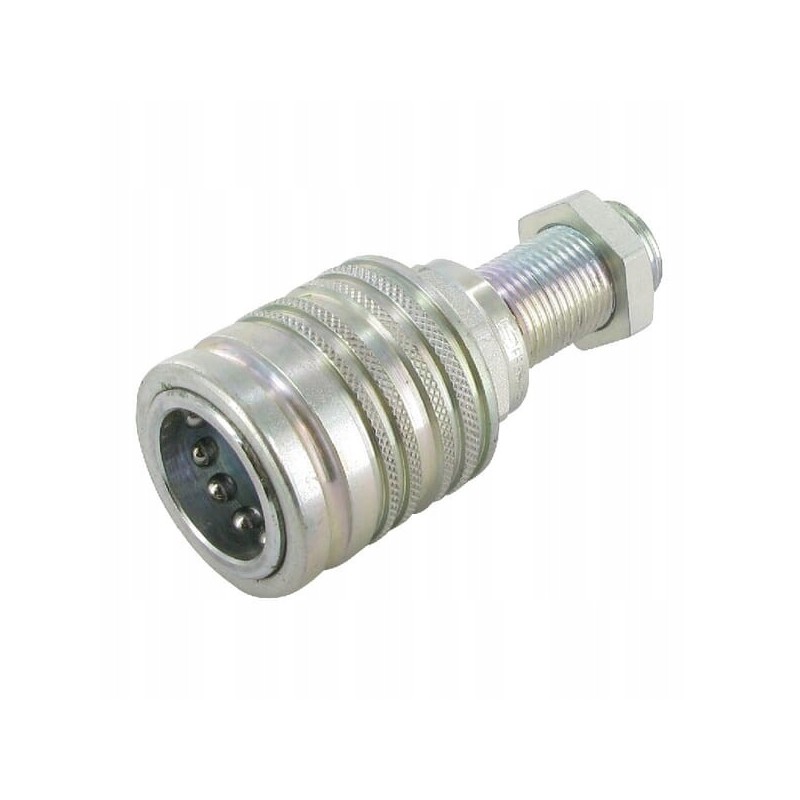

Quick connector PVC socket 1 2 thread M18x1 5 12l

Quick connector PVC socket 1/2 bulkhead thread M18x1.5 12L INDEX: CPV0851815F

Material: Carbon steel

Technical information: - Connection is made by pressing the plug (one-handed operation)

Features: - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double-sided action) - Tear-off function - Induction hardening in places exposed to rapid consumption

Valve type: Mushroom head

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Mineral oil-based fluids

Size: 12.5mm

Outside diameter: 38mm

ISO standard: 7241-A

Series: CPV

Connection diameter: 38mm

Surface treatment: White passivated

Connector thread type: Metric

Total length: 86.3mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 277.5g

Working pressure: 250BAR

Type of connector no. 2 - male/female: Male

Possibility of connection under pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press, to connect

Diameter of connection no. 2: 12 mm

Thread pitch of connector no. 2: 1.5 mm

Disconnect method: Pull to disconnect

Type of connector no. 2: Thread

Thread diameter of connection no. 2: M18

Size (code): BG 3

Connection thread type no. 2: Metric

Flow at 2 bar pressure: 75l/min

Connection type no. 1: Quick connector

Connector no. 1 type - male/female: Female

Connection no. 1 thread diameter: 18mm

Connector no. 1 thread pitch : 1.5mm

Connector No. 1 key size: 27

24mm

Connector No. 1 thread type - code: 05
