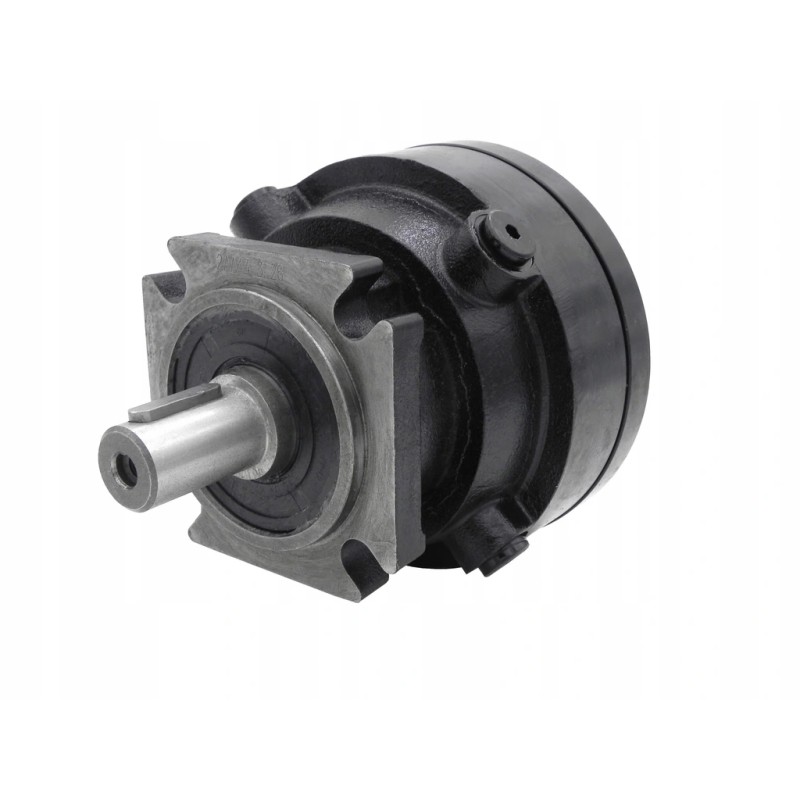

Brake lb288c 43c hydraulic motor smr bmr omr

Hydraulic brake BK2-1-430-AAB LB288C-43C BK2 series brakes are one type of disc brakes. The braking force is caused by the spring, and the hydraulic pressure releases the braking force.

Features as follows:

- BK2 series has a special friction disc and spring structure with high strength

- Long service life, low noise, high braking reliability.

- Thanks to 4 drain holes, the brake can be used in various applications.

- Compact structure, easy installation.

- Can be used together with BMP, BMR, BMS series hydraulic motor

Installation:

- Installation: Install the BK2 brake with hydraulic motor, fill the brake with lubricating oil for drain port and then assemble with other parts.

- Fluid type: Mineral based HM (GB / T763.2-87) (ISO6743 / 4) or HLP (DIN51524).

- Temperature range: normal -20℃ -90℃ best optimal situation 20℃ -60℃

- Viscosity range: 20 ~ 75mm2/s, best optimal situation 42 ~ 74mm2/s at 40℃ .

- Filtration: nominal filtration 25 microns, ISO code 20/16.

- Maintenance: change after the first 50 ~ 100h, then after every 500 ~ 1000h.

430 Nm version

For a 25 mm shaft
