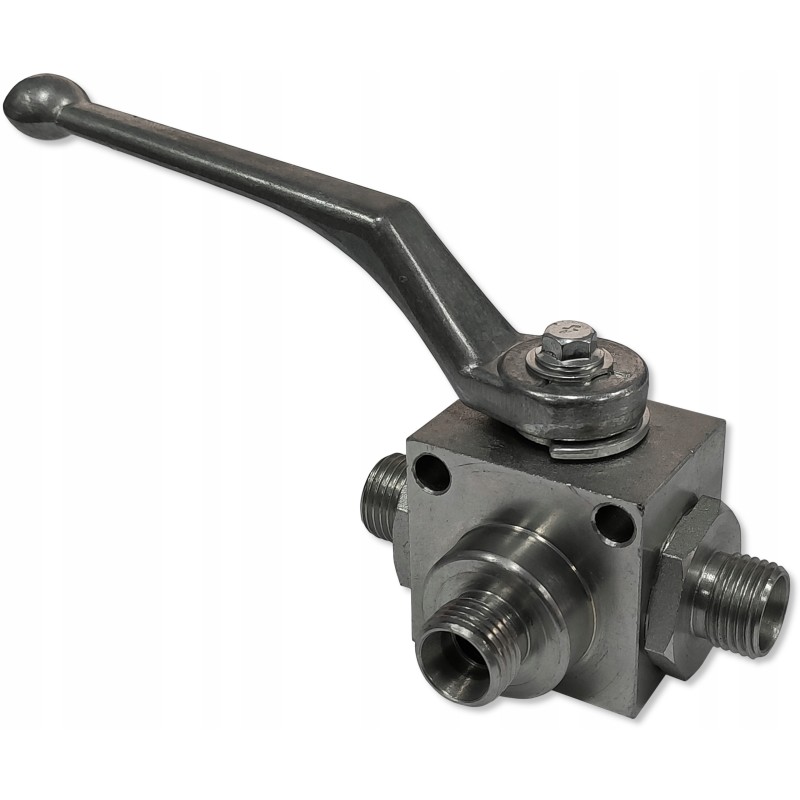

3-way manual ball hydraulic valve M16 20l

3-WAY HYDRAULIC BALL VALVE M16x1.5 SKRAW-MET CODE:[2423]The hydraulic valve is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

High pressure ball valve - rotates 90 degrees - is mainly used to close, open and regulate the direction of liquid flow (e.g. hydraulic oil) between two independent hydraulic lines in the hydraulic system.

The valves are characterized by compact design, reliable tightness, simple design and durability over many years of use at high pressure.

________________________________

To connect, simply connect the power line to the P port. Connect the hydraulic lines between the A and B ports, between which the flow direction is regulated. Technical specifications: Maximum flow: 20 L/min

External threads: M16x1. 5

Maximum liquid pressure: 500 Bar

Ambient temperature: -40°C to +60°C

Oil temperature: -15°C to +80°C

Material: galvanized steel
