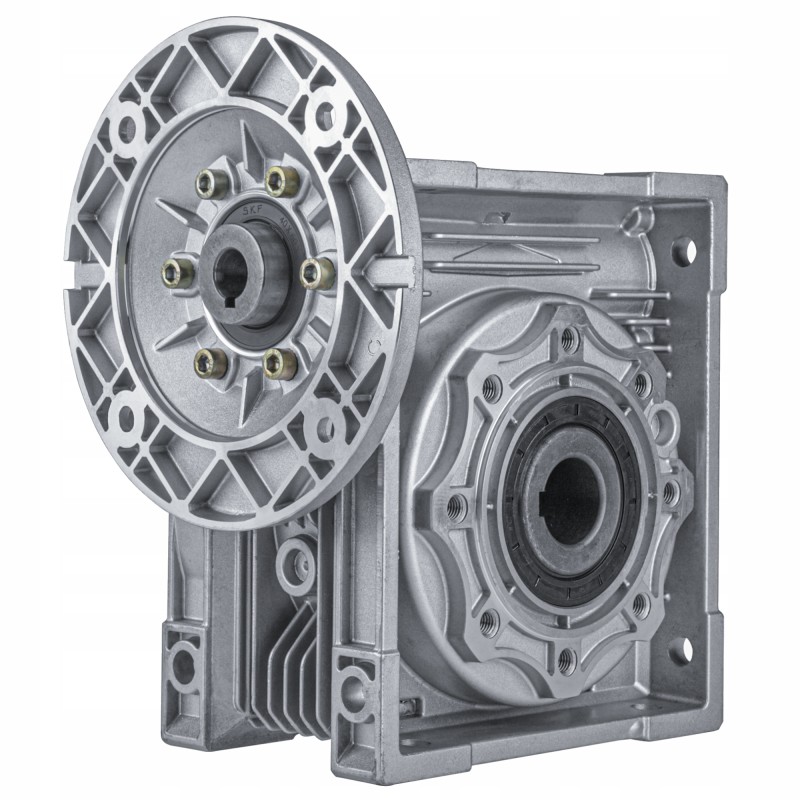

Gearbox for the B5 HMRV 1 80 electric motor

HMRV 90 WORM GEAR 1:80 IEC80 FOR IEC80 ELECTRIC MOTORS WITH B5 FLANGE Production:

Original product of the Hydrolider brand, symbol: 1.42.38.9080180.35

Application:

Gear HMRV 90 intended for reducing the output speed of 1- and 3-phase electric motors with mechanical size IEC80, equipped with a B5 flange with an external diameter of 200 mm.

Used in various types of industrial machines, agricultural and forestry, among others, for woodworking machines, pressure washers, conveyor drives, augers, elevators and others.

HMRV gears can be used as a replacement for RV, PMRV gears , WMI, DKM, SMI with the same mechanical size and gear ratio.

Technical data:

Type: HMRV 90

Gear ratio (speed reduction): 1: 80

Inner diameter of the output shaft: 35 mm

Output shaft revolutions at 1400 rpm on the engine: 17.5 rpm

Maximum power: 0, 83 kW

Maximum rated torque: 285 Nm

Additional equipment: screws and nuts to be attached to the motor

Motor mechanical size: IEC80

Recommended engine power: 0.55 kW, 0.75 kW, 1.1 kW

Recommended engine speed: 750 - 3000 rpm

Motor flange type: B5

Outer diameter of the motor flange: 200 mm

Spacing of mounting holes: Ø 165 mm

Centering flange diameter: 130 mm

Shaft diameter motor: 19 mm

Motor shaft keyway width: 6 mm
