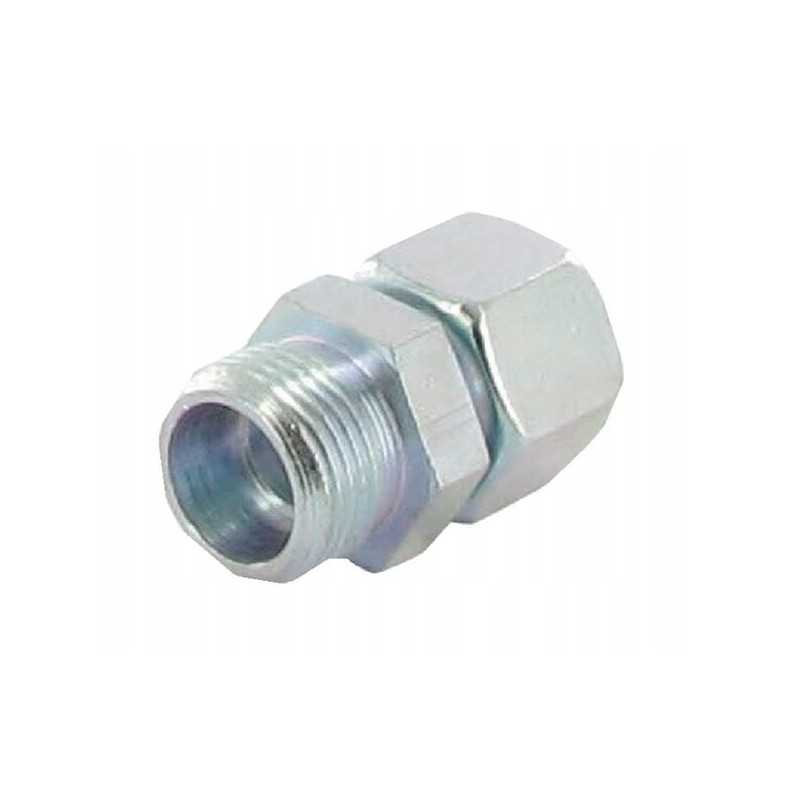

Straight connector with screws m12x1 5 6l m16x1 5 8s

Straight connector with nut M12x1.5 6L - M16x1.5 8S Parameters

Part Number: KOVO6L8S

Unit: Piece

Manufacturer: Dietzel

Cone Angle: 24 °

Shape: Straight - 2 Sides Connection

Connector Type No. 1: Swivel Nut

Connector Type No. 1 - Male/Female: Female

Connection Diameter: 6 mm

Connector No. 1 Thread Diameter: M12

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector No. 2 Diameter: 8 mm

Thread diameter of connection no. 2: M16

Thread pitch of connection no. 2: 1.50 mm

Thread type of connection no. 2: Metric

DIN standard: 2401

Total length: 30 mm

Surface treatment: Zinc-plated

Working pressure max.: 315 BAR

Advantages

- Limited risk of leakage Product details

- Pre-assembled with O-ring - L series nut

- External S - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request - Galvanized, chromium-free CR6

Benefits

- Low risk of leakage Contains

- Corps

- Connecting nut

- Conical seal with O-ring seal Series

- 6L

- 8S
