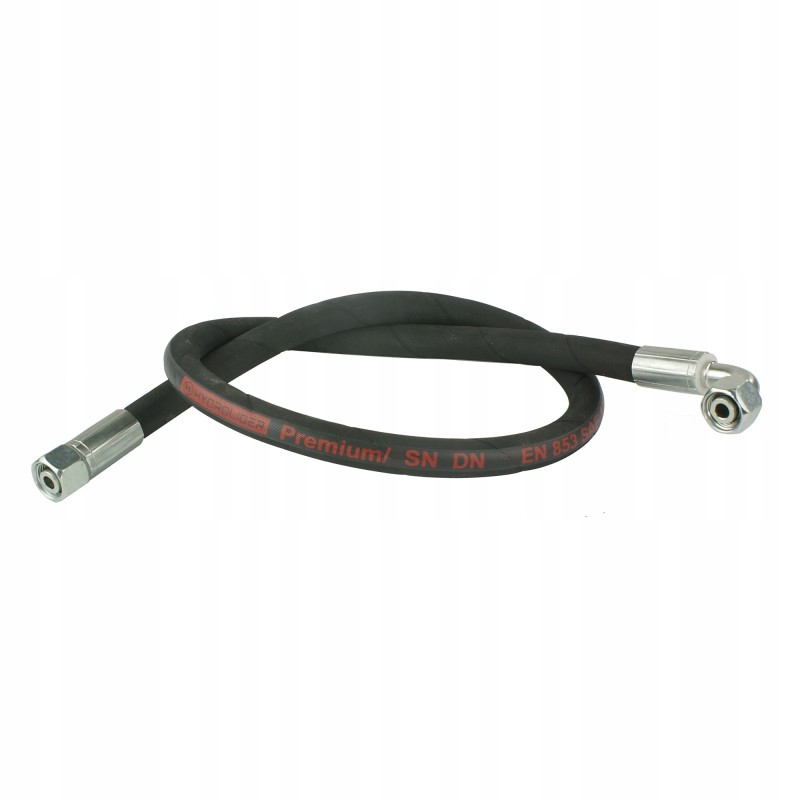

Hydraulic hose pipe dn10 2sn m18x1 5 ak 20cm

HYDRAULIC HOSE ZAKUTYP AK10/2-200.18/18 Production:

Original HYDROLIDER brand hose, symbol: 1.70.29.0200

Application:

Universal, pressure hydraulic hose with self-seal when tightening. It is widely used in hydraulic systems in agriculture and industry. It is used to connect basic hydraulic components, including: pumps, distributors, tanks, actuators, engines, etc.

The cable can be used in hydraulic systems with a maximum pressure of up to 330 bar and a maximum flow of up to 50L/min, in installations operating indoors and outdoors.< p>

Technical data:

The hydraulic hose is crimped, blown (cleaned with pressure from the compressor), ready for connection and operation in the system. The finished hose includes: an original, double-reinforced and flexible hose from the Hydrolider brand and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with clamps: 200mm

Types of clamps:

On one side, type A, straight with a nut M18x1.5

On the other hand, type K angled 90 degrees with M18x1.5 nut

Number of braids: double braid (2SN)

Maximum pressure: 330Bar< p>

Recommended flow in the system: from 1 to 50L/min

Inner diameter of the passage: (DN10): 10mm

Outer diameter of the hose: 19mm

Threads and clamping cone fit all connectors and connections in our offer.
