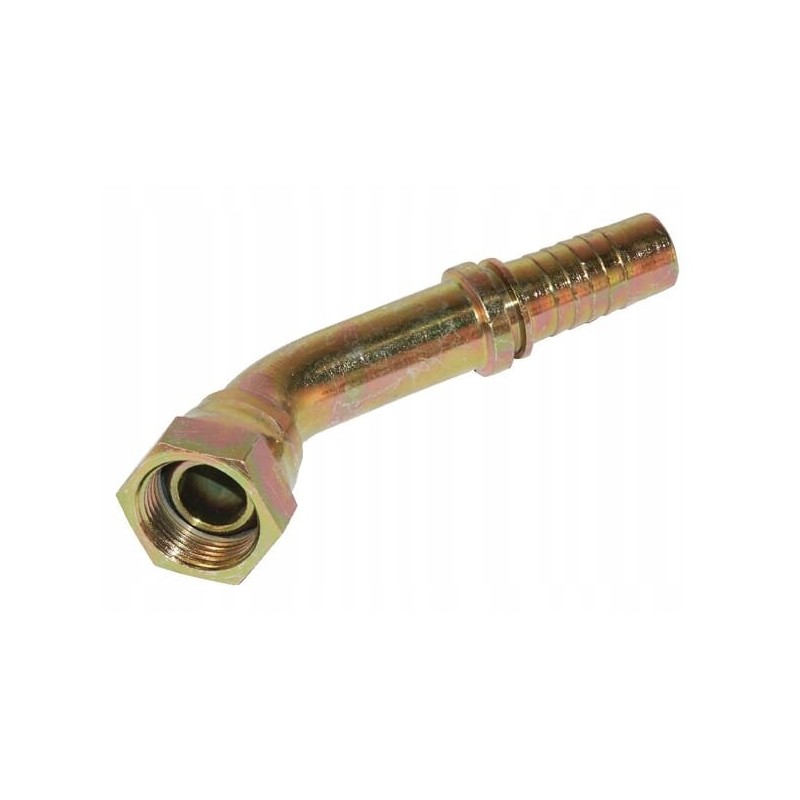

Tip dn20 1 bsp 45

DN20-1' BSP-45° fitting Parameters

Part Number: PF201645

Unit: Piece

Manufacturer: Alfagomma

Cone Angle: 60 °

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Conical

Connector Type No. 1 - Male/Female: Female

Connector Type No. 1 - code: DKOR

Length of connector no. 1: 77.5 mm

Connector thread diameter: 1 inch

Connector thread type: BSP

Wrench size for connector no. 1: 38.0 mm

Connector type no. 2: Hose connector

Connector type no. 2 - male/female: Male

Diameter of connection no. 2: 3/4 inch

Length of connector no. 2: 31.5 mm

ISO standard: 228

Angle: 45 °

Material: Steel

OE reference number: H1220843-121600

Connection : xx

Type: DKOR

Surface treatment

- Galvanized

- White passivated
