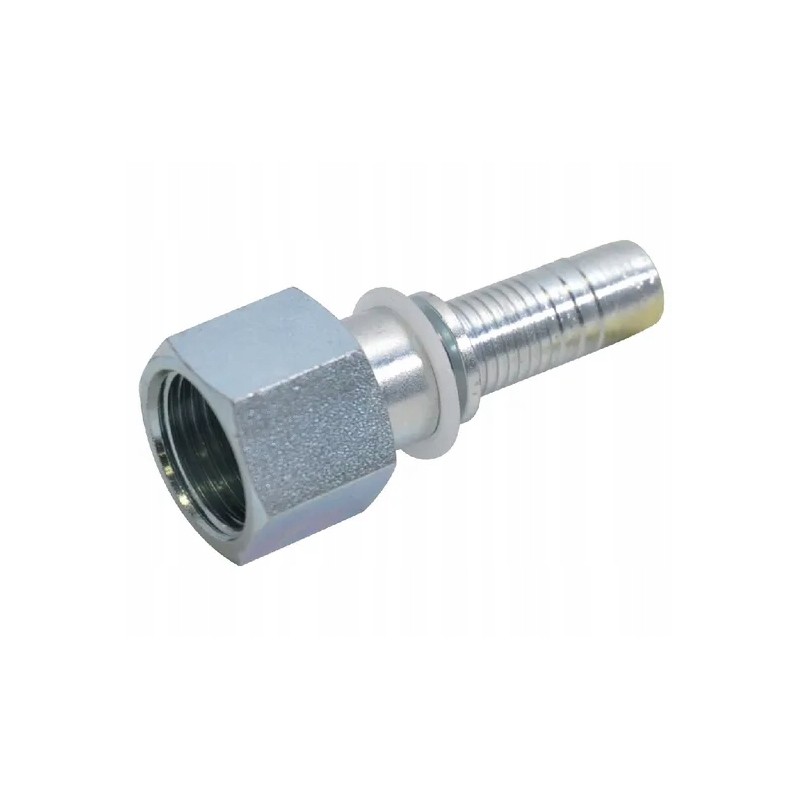

Pf136 tip dn13 3 8 bsp

PF136 DN13-3/8 BSPEAN fitting

8716106786626

Product details

O-ring

Includes

Tips

O-ring

Cone angle

60 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOR

Connector thread diameter

3/8 inch

Connector thread type

BSP

Wrench size for connector no. 1

22.0 mm

Type of connector no. 2

Hose connector

Connector No. 2 Type - Male/Female

Male

Connection No. 2 Diameter

1/2 inch

Diameter of connection no. 2

13 mm

Dimension from the axis of the connector to the bottom of the next connector

18.6 mm

ISO standard

228

Height

22 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

BSP union nut with 60° external cone

Application

BSP screw connections

Type

DKOR
