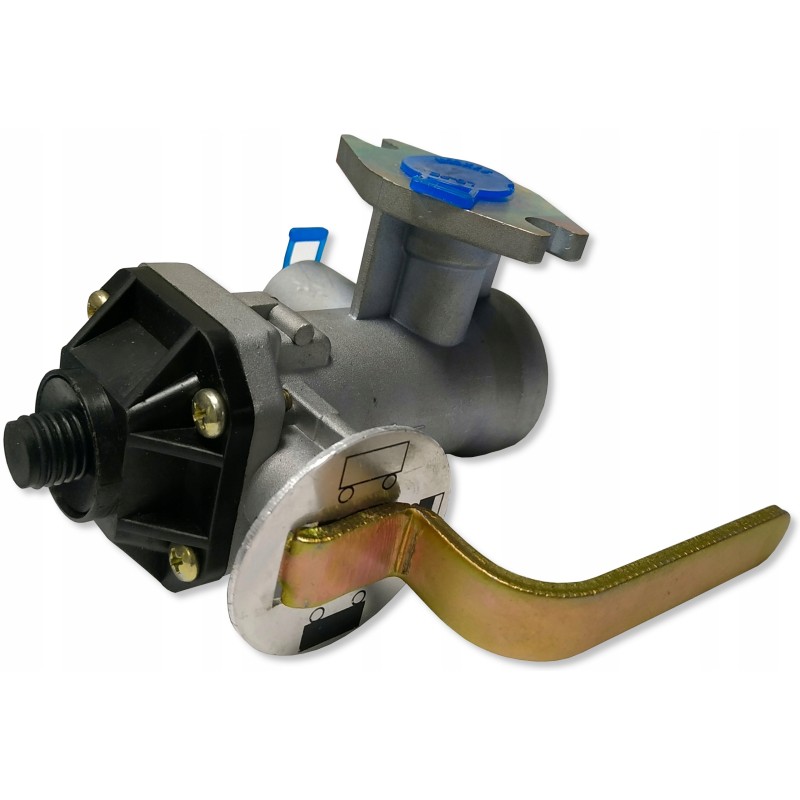

Braking force regulator d47 d50 d35 3-range

3-RANGE BRAKE FORCE REGULATOR [0976]

The brake force regulator is used in Autosan Sanok D-35, D-47, D-50 D-732, HL 8011, HL 6011 trailers

It is used in single- and double-circuit air braking systems trailers.

Thanks to this type of regulators, we are able to manually determine the range of braking force values (depending on the loading condition) before starting to drive.

Technical specifications: Setting range without load (Bar) - empty - 0.8 - 2.2

Setting range 1/2 load (Bar) - 2.8 - 3.7

Setting range full load (Bar) - pressure in the tank

Thread of pneumatic connections - M22x1.5

Spacing of mounting holes (mm) - 55
